Construction & Civil Engineering Submersible Pump Sandy & Muddy Water PQ Series

Submersible Pump Sandy & Muddy Water PQ Series PQ-55022 PQ-55022

Triple Life span Compared with Cast Iron Impeller

Application


•Durable and long life time

Impeller is manufactured from a blended rubber compound providing maximum wear resistance up to three times over cast iron. Maximal life-span and super hard mechanical seal.

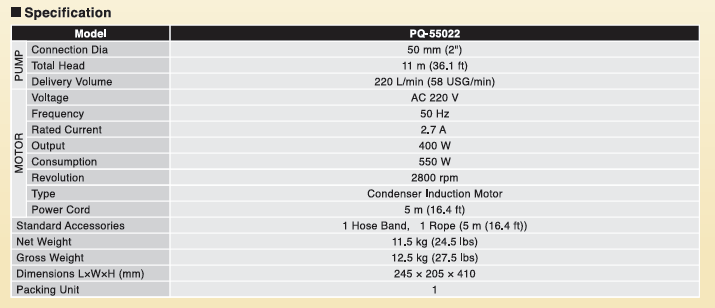

Model PQ-55022
P
U
M
P
Connection Dia 50 mm (2")
Total Head 11 m (36.1 ft)
Delivery Volume 220 L/min (58 USG/min)
M
O
T
O
R
Voltage AC 220 V
Frequency 50 Hz
Rated Current 2.7 A
Output 400 W
Consumption 550 W
Revolution 2800 rpm
Type Condenser Induction Motor
Power Cord 5 m (16.4 ft)
Standard Accessories 1 Hose Band, 1 Rope (5 m (16.4 ft))
Net Weight 11.5 kg (24.5 lbs)
Gross Weight 12.5 kg (27.5 lbs)
Dimensions L×W×H (mm) 245 × 205 × 410
Packing Unit 1
