Products

Construction & Civil Engineering Submersible Pump Sandy & Muddy Water PX Series

Submersible Pump Sandy & Muddy Water PX Series PX-55011 PX-55011

Great Durability

Application



Introduction examples


• Pump up to 20mm water level

• Easy maintenance

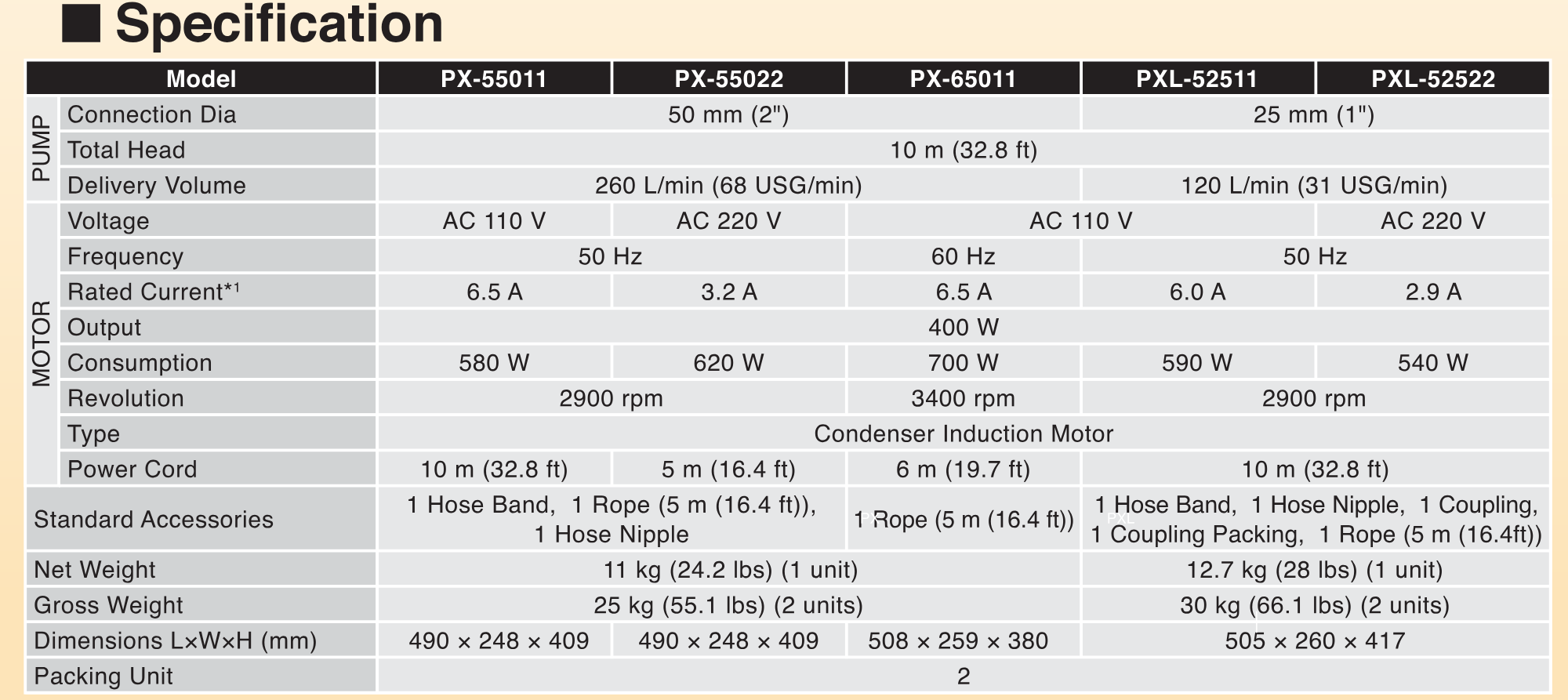

Model PX-55011
P
U
M
P
Connection Dia 50 mm (2")
Total Head 10 m (32.8 ft)
Delivery Volume 260 L/min (68 USG/min)
M
O
T
O
R
Voltage AC 110 V
Frequency 50 Hz
Rated Current*1 6.5 A
Output 400 W
Consumption 580 W
Revolution 2900 rpm
Type Condenser Induction Motor
Power Cord 10 m (32.8 ft)
Standard Accessories 1 Hose Band, 1 Rope (5 m (16.4 ft)), 1 Hose Nipple
Net Weight 11 kg (24.2 lbs)(1unit)
Gross Weight 25 kg (55.1 lbs)(2units)
Dimensions L×W×H (mm) 490 × 248 × 409
Packing Unit 2
*1 Starting current is three times higher than rated current.


Performance curve and outline drawing
Document download

Optional parts


Support for this product


FAQ about PX Series

FAQ aboutSandy & Muddy Water

FAQ about Submersible Pump
