Construction & Civil Engineering Submersible Pump Residual Water PXL Series

Submersible Pump Residual Water PXL Series PXL-52511 PXL-52511

For Residual Water Up to 1 mm water level

Application

• Drainage of underground water

• Disposal of residual water from roof tank of buildings, swimming pools, etc.

• Construction site

• Pond / Aquarium usage

• Irrigation

• Home / Domestic application

*For clear water only


Introduction examples


• Designed for application in narrow access drainage especially in manhole or bottom pit.

Model PXL-52511
P
U
M
P
Connection Dia 25 mm (1")
Total Head 10 m (32.8 ft)
Delivery Volume 120 L/min (31 USG/min)
M
O
T
O
R
Voltage AC 110 V
Frequency 50 Hz
Rated Current*1 6.0 A
Output 400 W
Consumption 590 W
Revolution 2900 rpm
Type Condenser Induction Motor
Power Cord 10 m (32.8 ft)
Standard Accessories 1 Hose Band, 1 Hose Nipple, 1 Coupling,
1 Coupling Packing, 1 Rope (5 m (16.4ft))
Net Weight  12.7kg (28 lbs)(1unit)
Gross Weight 30 kg (66.1 lbs)(2units)
Dimensions L×W×H (mm) 505 × 260 × 417
Packing Unit 2
*1 Starting current is three times higher than rated current.

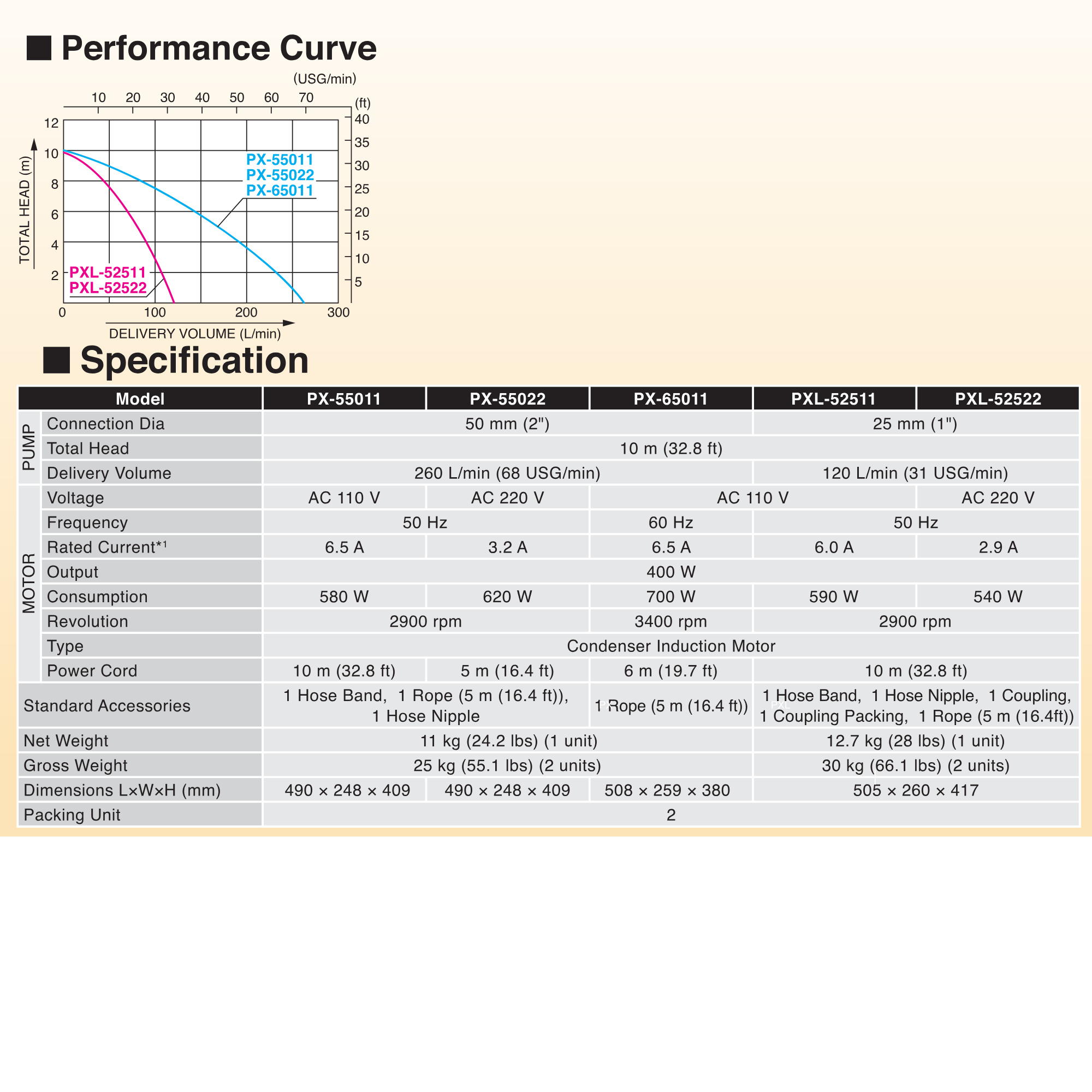

Performance curve and outline drawing
