Construction & Civil Engineering Submersible Pump Residual Water PXL Series

Submersible Pump Residual Water PXL Series PXL-52522 PXL-52522

For Residual Water Up to 1 mm water level

Application

• Drainage of underground water

• Disposal of residual water from roof tank of buildings, swimming pools, etc.

• Construction site

• Pond / Aquarium usage

• Irrigation

• Home / Domestic application

*For clear water only


• Designed for application in narrow access drainage especially in manhole or bottom pit.

Model PXL-52522
P
U
M
P
Connection Dia 25 mm (1")
Total Head 10 m (32.8 ft)
Delivery Volume 120 L/min (31 USG/min)
M
O
T
O
R
Voltage AC 220 V
Frequency 50 Hz
Rated Current*1 2.9 A
Output 400 W
Consumption 540 W
Revolution 2900 rpm
Type Condenser Induction Motor
Power Cord 10 m (32.8 ft)
Standard Accessories 1 Hose Band, 1 Hose Nipple, 1 Coupling,
1 Coupling Packing, 1 Rope (5 m (16.4ft))
Net Weight  12.7kg (28 lbs)(1unit)
Gross Weight 30 kg (66.1 lbs)(2units)
Dimensions L×W×H (mm) 505 × 260 × 417
Packing Unit 2
*1 Starting current is three times higher than rated current.

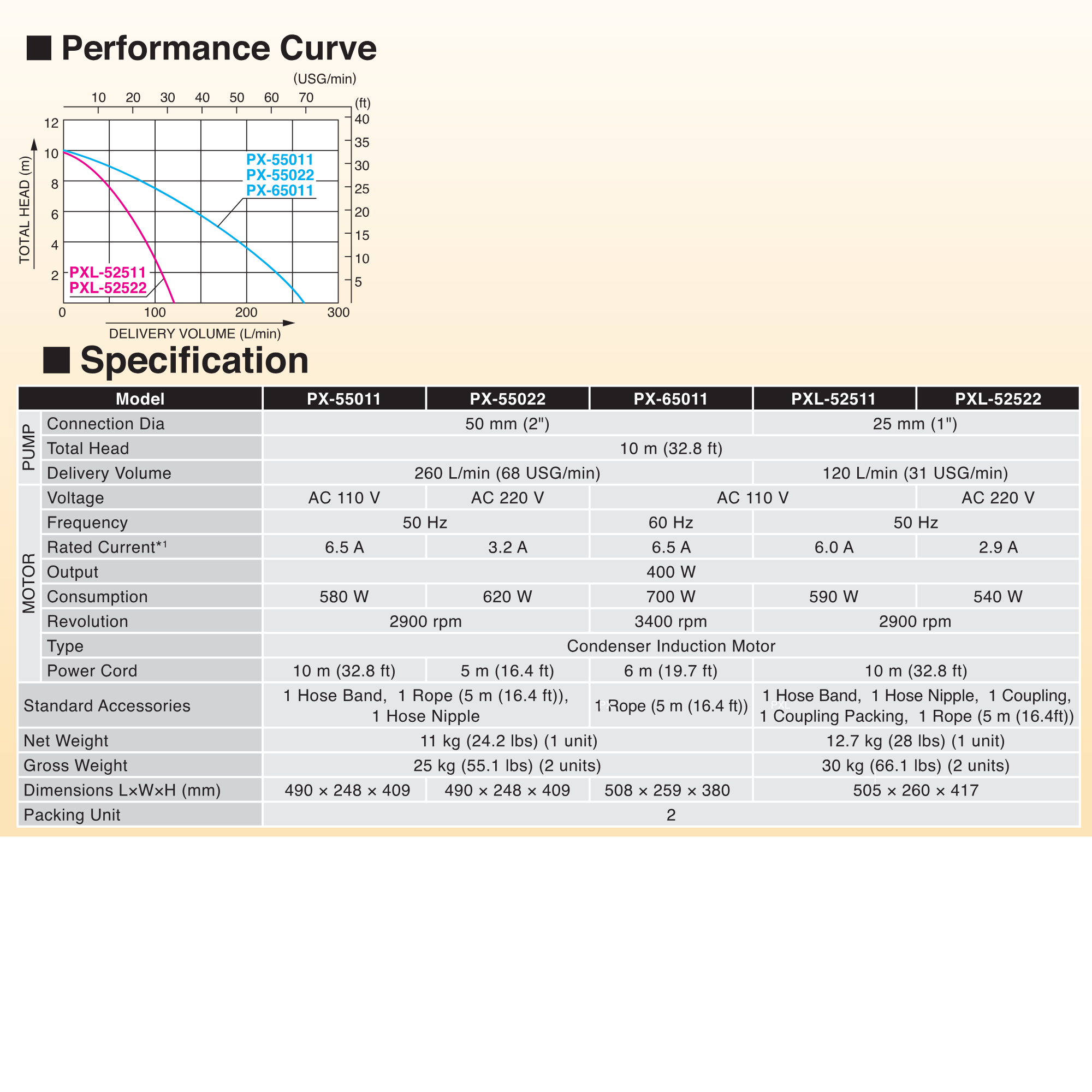

Performance curve and outline drawing
Document download

Optional parts

Support for this product

FAQ about PXL Series

FAQ aboutResidual Water

FAQ about Submersible Pump
