Marine & Fishery Submersible Pump Sea Water SK Series

Submersible Pump Sea Water SK Series SK-2524 SK-2524

"PONDY" & "MARINE PET" Submersible Pump for Seawater

Application

• Feeding or draining water in fish farms

• Washing purpose

• Draining bilge water


Model SK-2524
P
U
M
P
Connection Dia 25 mm (1")
Total Head 6 m (19.6 ft)
Delivery Volume 80 L/min
(21 USG/min)
M
O
T
O
R
Voltage DC 24 V
Frequency -
Rated Current 8.5 A
Rating Continuous
Output 123 W
Revolution 3000 rpm
Life Span Approx. 500 hrs
Power Cord 5 m (16.4 ft)
Standard Accessories 1 Coupling Set (φ25)
1 Hose Nipple (φ20)
1 Hose Band (φ25)
1 Hose Band (φ20)
1 Rope (5 m (16.4 ft))
Net Weight 5.5 kg (12.2 lbs)(1unit)
Gross Weight 11 kg (24.2 lbs)(2units)
Dimensions L×W×H (mm) 415 × 238 × 300
Packing Unit 2

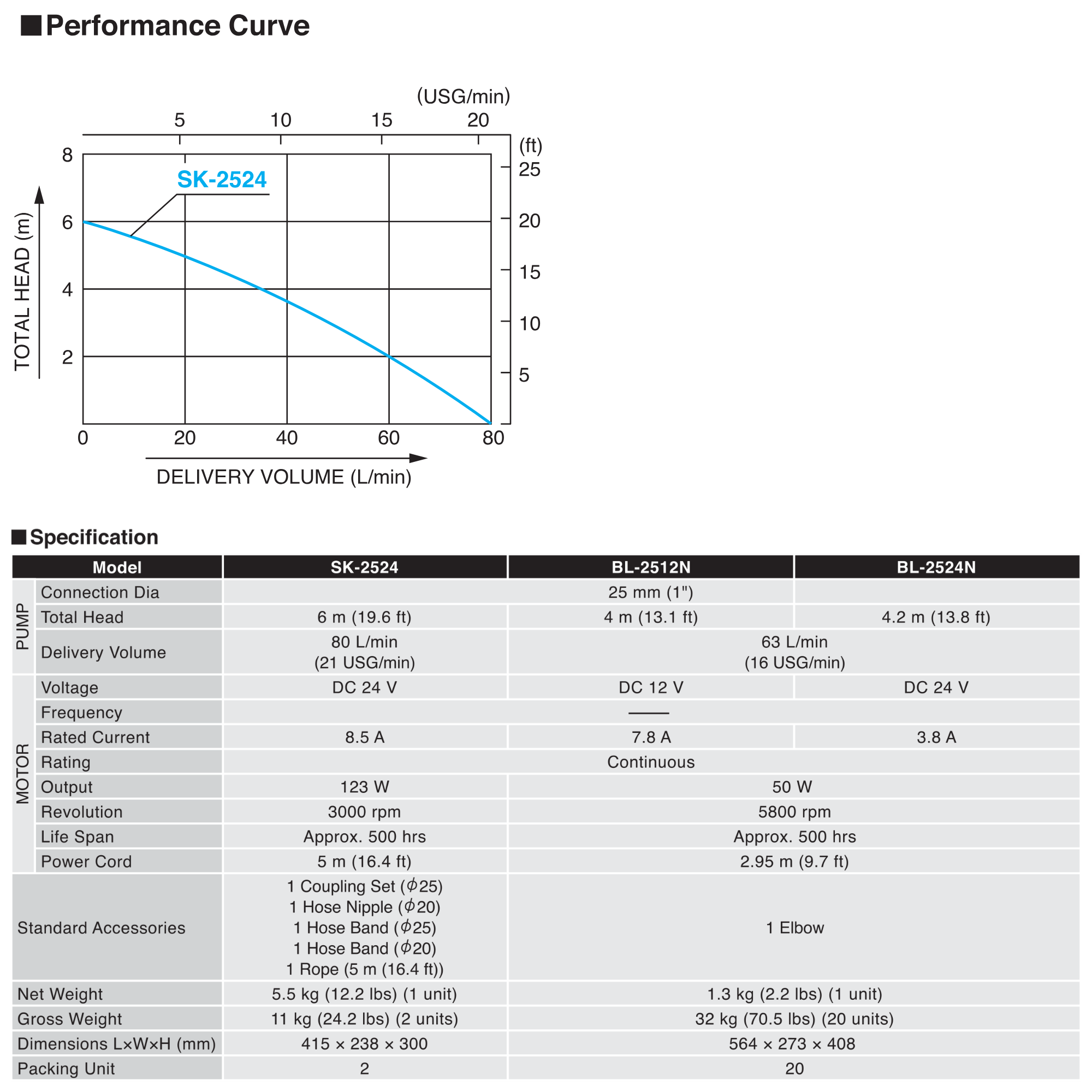

Performance curve and outline drawing
