"GEAR PUMPS" Suitable for Water, Oil & Various Liquids Applications
• Kerosene
• Light oil
• Machine oil
• Heavy oil
• Water

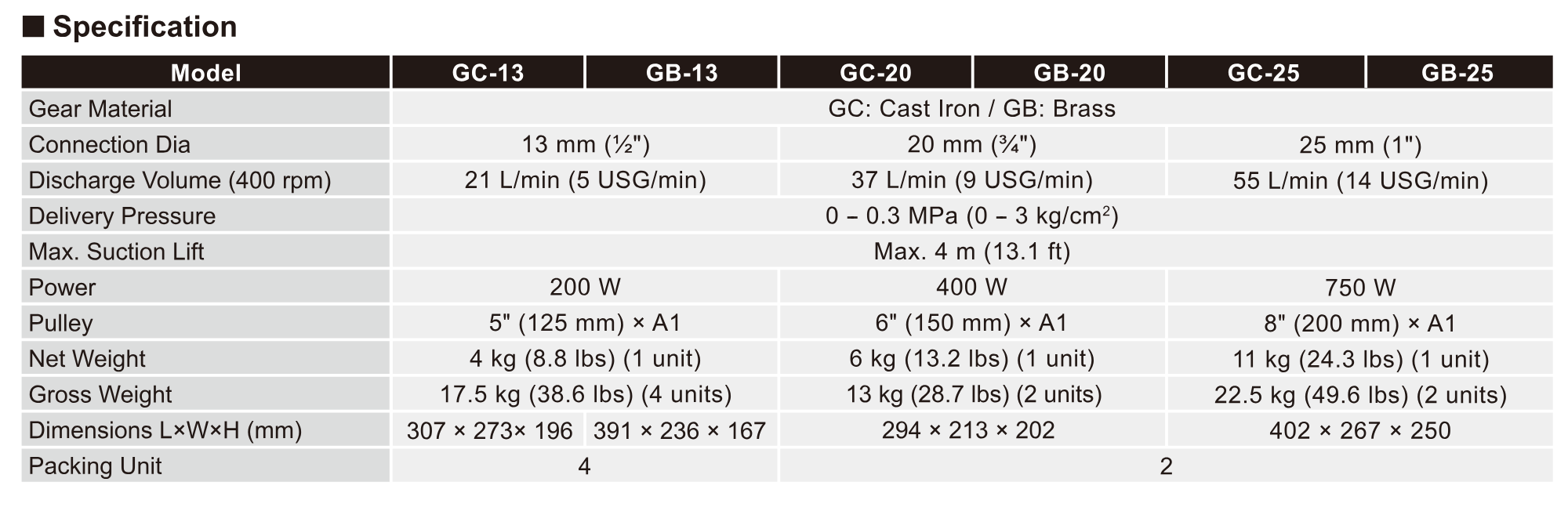

| Product category | - |
|---|---|
| Product name | GB-25 |
| Gear Material | GC: Cast lron /GB: Brass |
| Connection Dia | 25 mm (1 '''') |
| Delivery Volume | 55 L/min (14 USG/min) |
| Delivery Pressure | 0-0.3 MPa (0-3 kg/cm2) |
| Max.Sucution Lift | Max. 4 m (13.1 ft) |
| Power | 750W |
| Pulley | 8" (200 mm) ×A1 |
| Net weight | 11 kg (24.3 lbs) (1 unit) |
| Gross weight | 25 kg (55.1 lbs) (4 units) |
| Dimensions L x W x H(mm) | 402 x 267 x 250 mm |
| Packing Unit | 2 |
