Industrial Application Oil Pump Electric Fill Pump FD/FA/FR Series

Oil Pump Electric Fill Pump FR Series FR-200 FR-200

Powerful "FILL PUMP" Only 2 Minutes to Empty 200L Drum

Application

• Low viscosity oil

• Heavy fuel oil A

• Kerosene

• Diesel

• Light oil


Model FR-200
P
U
M
P
Connection Dia 32 mm (1¼")
Connection Thread Inner Pipe Thread
Total Head 11 m (36 ft)
Delivery Volume 110 L/min (29 USG/min)
M
O
T
O
R
Type Enclosed Fan-Cooled Commutator
Voltage AC 110V AC 220V-240V
Voltage 5 A 2.5 A
Output 200 W
Revolution 6200 rpm
Rating Continuous
Power cord Oil-Proof Cord 5 m
Suction Pipe  922mm
Delivery Hose 1 Oil-Proof Rubber Hose (φ32mm(φ1¼")×2 m)
Net Weight 12.5 kg (27.6 lbs) (1 unit)
Gross Weight 30 kg (66.1 lbs) (2 units)
Dimensions L×W×H (mm) 1218 × 281 × 157
Packing Unit 2

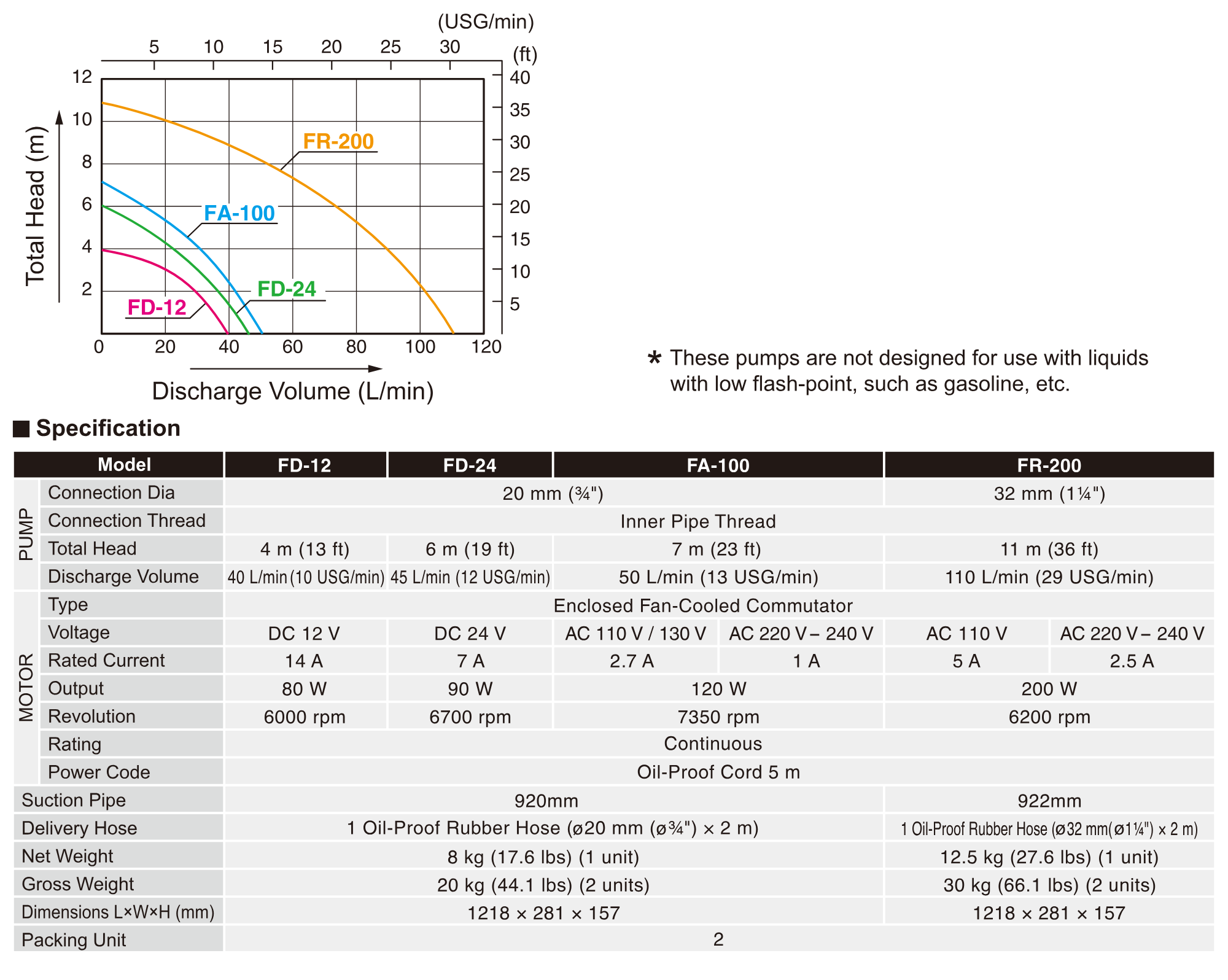

Performance curve and outline drawing
