Agriculture & Garden Sprayer Hand Pressure HS Series

Sprayer Hand Pressure HS Series HS-503W HS-503W

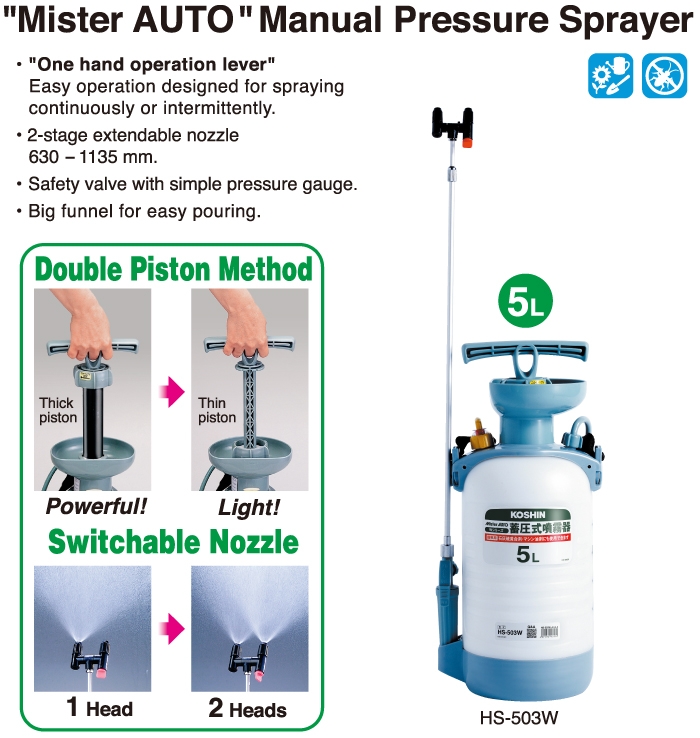

"Mister AUTO" Manual Pressure Sprayer

Application


• "One hand operation lever"

Easy operation designed for spraying continuously or intermittently.

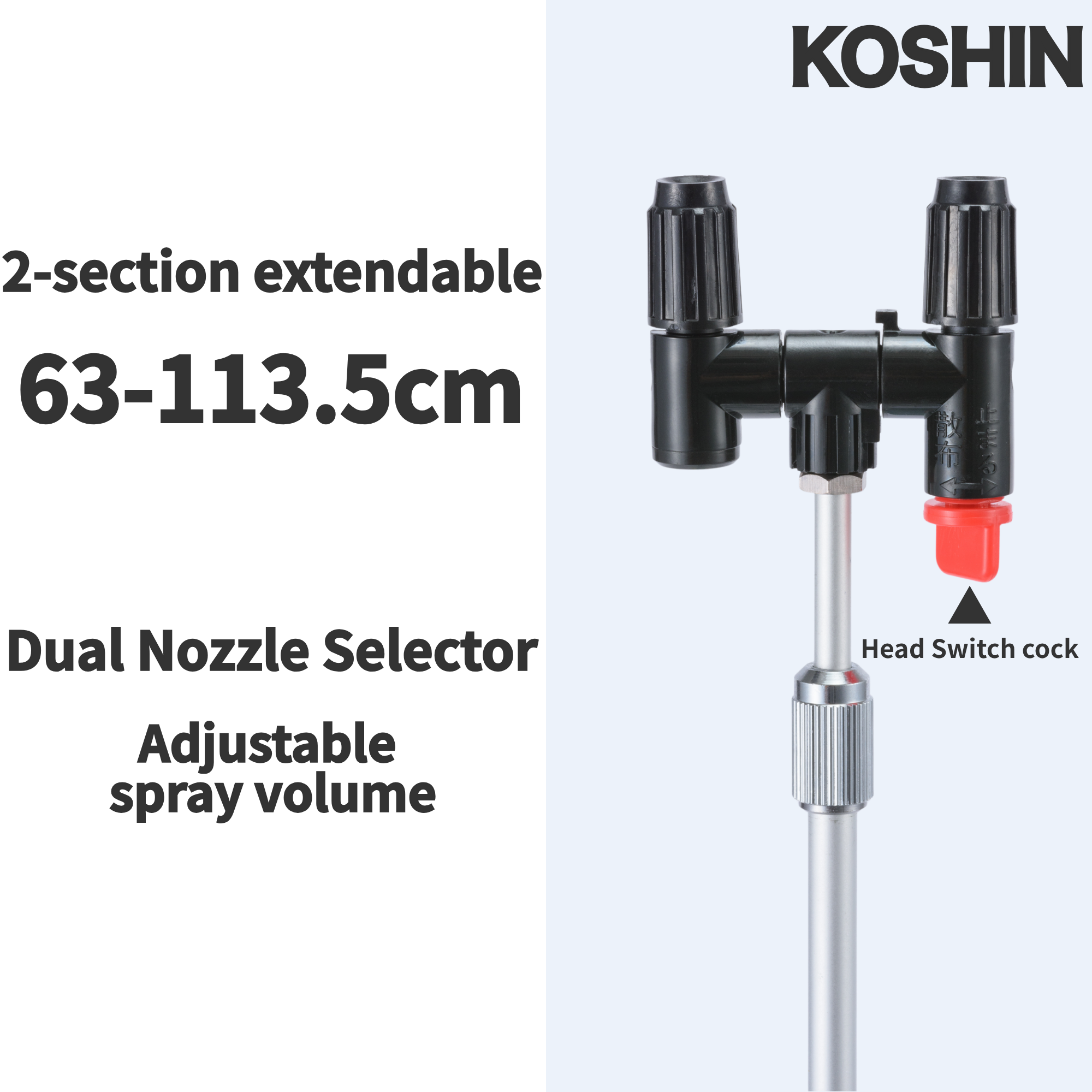

• 2-stage extendable nozzle 630 - 1135 mm.

• Safety valve with simple pressure gauge.

• Big funnel for easy pouring.

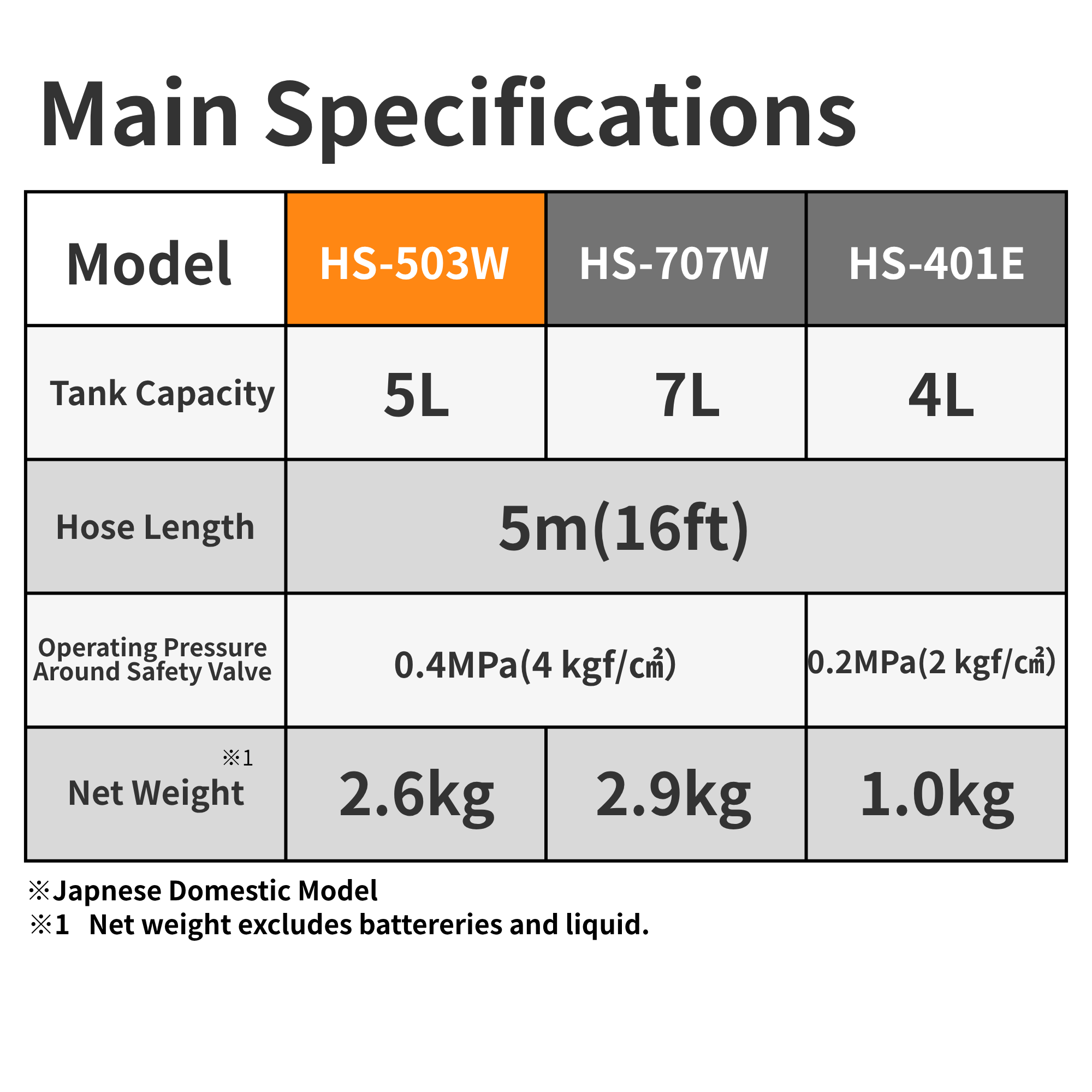

Product category
Product name HS-503W-BAA-0
Tank Capacity 5 L
Hose Length 5 m (16 ft)
Nozzle Type 2-Stage Extendable 2-Head
Total Extendable Length 63 - 113.5 cm (24 - 44 '')
Operating Pressure Around Safety Valve 0.4 MPa (4 kgf/cm2)
SprayArea 56-72.7 m2
Time
Accessories
Net weight 2.7 kg (5.9 lbs)(1 unit)
Gross weight 13.4 kg (29.5 lbs)(4 units)
Product dimensions L x W x H 441 × 441 × 653 mm
Packing dimensions L x W x H
Packing Unit 4

Performance curve and outline drawing
Document download

Optional parts

Support for this product

FAQ about HS Series

FAQ aboutHand Pressure

FAQ about Sprayer
