Agriculture & Garden Sprayer Hand Pressure HS Series

Sprayer Hand Pressure HS Series HS-707W HS-707W

"Mister AUTO" Manual Pressure Sprayer

Application


• "One hand operation lever"

Easy operation designed for spraying continuously or intermittently.

• 2-stage extendable nozzle 630 - 1135 mm.

• Safety valve with simple pressure gauge.

• Big funnel for easy pouring.

Product category

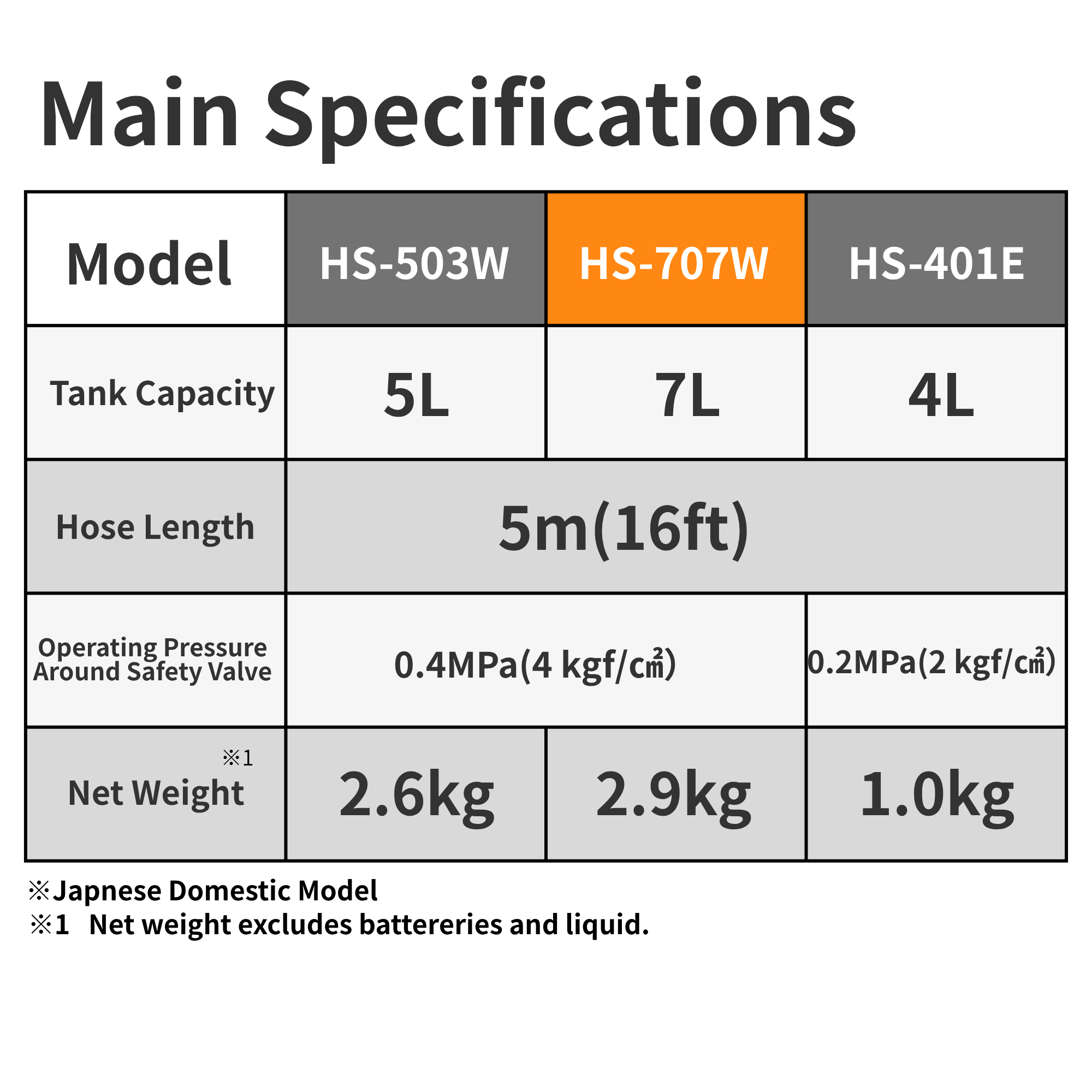

Product name HS-707W-BAA-0
Tank Capacity 7 L
Hose Length 5 m (16 ft)

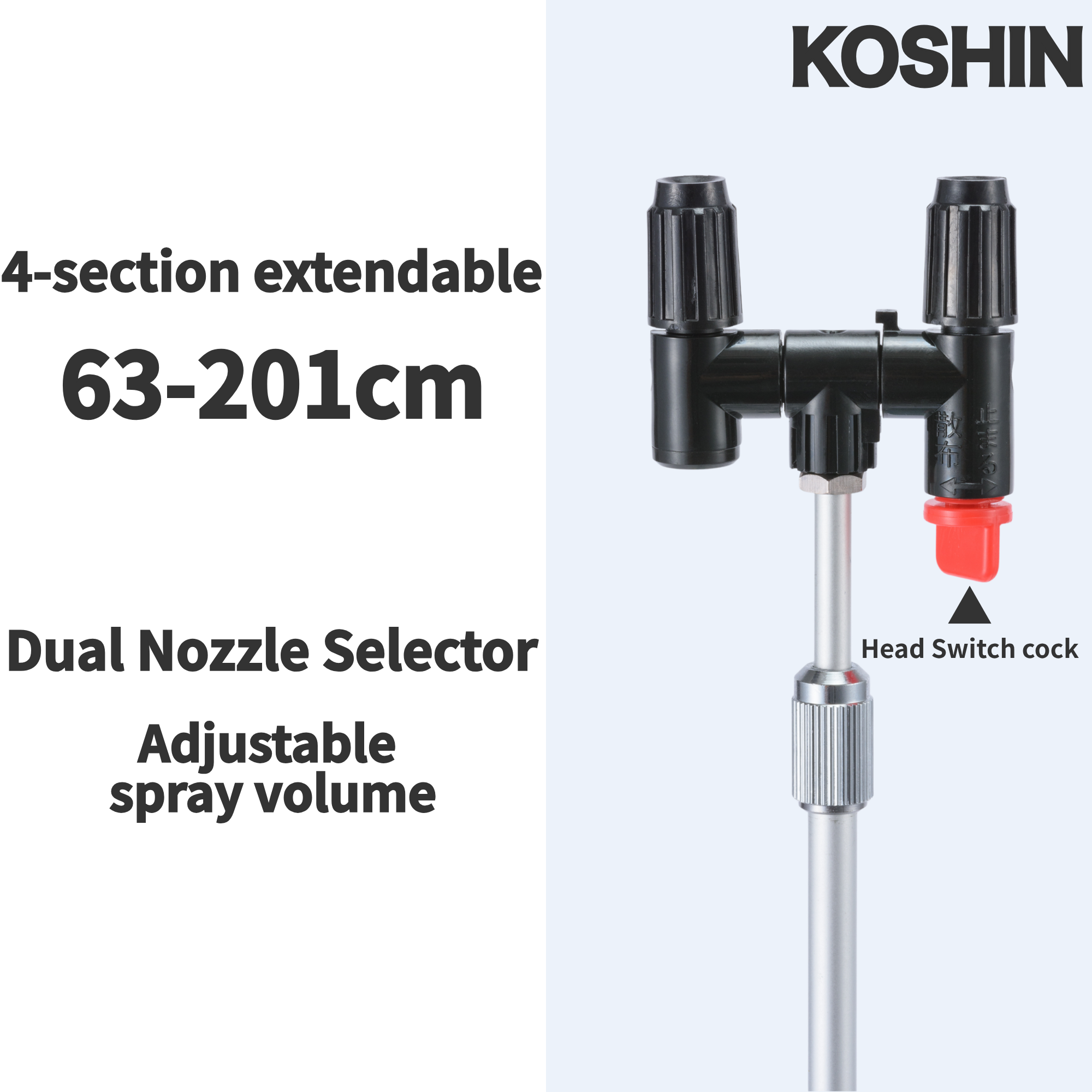

Nozzle Type 4-Stage Extendable 2-Head
Total Extendable Length 63 - 201 cm (24-79 '')
Operating Pressure Around Safety Valve 0.4 MPa (4 kgf/cm2)
Spray_Area 79-99 m2
Spray_Time
Accessories
Net weight 2.8 kg (6.17 lbs)(1 unit)
Gross weight 14.8 kg (32.6 lbs)(4 units)
Product dimensions L x W x H 411 × 411 × 653 mm
Packing dimensions L x W x H
Packing Unit 4

Performance curve and outline drawing
