Agriculture & Garden Engine Pump Clear Water Pump 2-4 Inch Pump Honda SEH Series (2")

Engine Pump Clear Water Pump 2-3 Inch Pump Honda SEH Series (3") SEH-80JP SEH-80JP

Complete Range of Water Pumps Powered by Honda Engine

Application


Product category
Product name SEH-80JP
Model name SEH-80JP-BAA-0
Pump_Connectiondia_Suction 80 mm (3 '')
Pump_Connectiondia_Discharge
Pump_Connection thread BSP Thread
Pump_Total head 27 m (88 ft)
Pump_Discharge volume 1100L/min (290 USG/min)
Pump_Max. suction head 8 m (26 ft)
Engine_Type Forced Air-cooled 4-stroke Gasoline Engine
Engine_Model HONDA GP160
Engine_Displacement 163 cm3
Engine_Rated output 2.9 kW(3.9PS) / 3600 min-1
Engine_Max. output 3.6 kW(4.9PS)/ 3600 min-1
Engine_Fuel Automotive Unleaded Gasoline
Engine_Fuel tank capacity 3.1 L (0.8 gal)
Engine_Engine oil
Engine_Engine oil capacity
Engine_Continuous operating time Approx. 2.2hrs
Engine_Starting method Recoil starter
Applicable liquids_Consistency
Applicable liquids_Suspended solid percentage
Applicable liquids_Max. solids size
Applicable liquids_Temperature
Accessories 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine tool set
Net weight 27.3 kg (60.2 lb)
Gross weight 30.0 kg (66 lb)
Product dimensions L x W x H
Packing dimensions L x W x H 525 × 389 × 458 mm

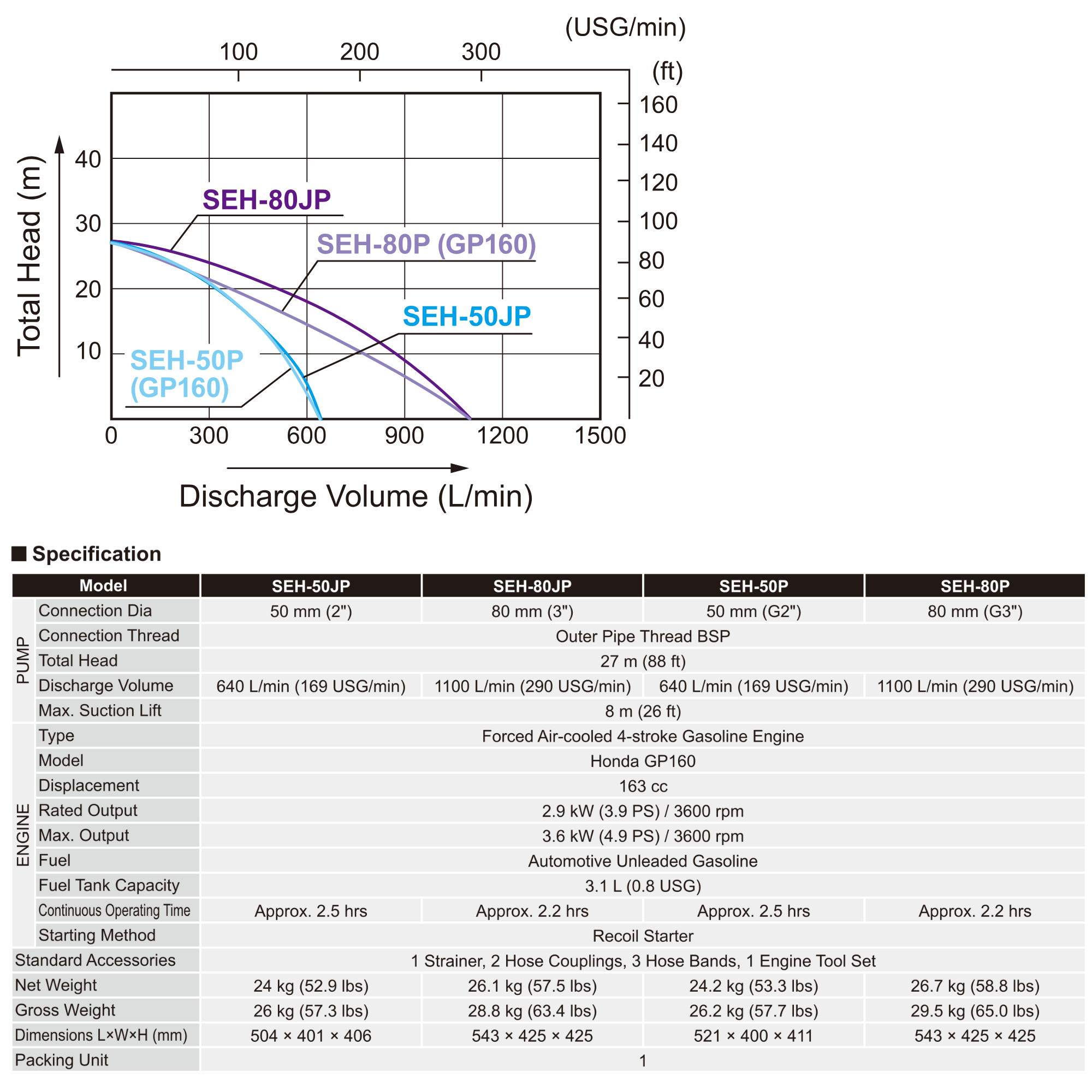

Performance curve and outline drawing
Document download

Optional parts

Support for this product

FAQ about Honda SEH Series (2")

FAQ aboutClear Water Pump 2-4 Inch Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
