Agriculture & Garden Sprayer Engine Driven ES Series

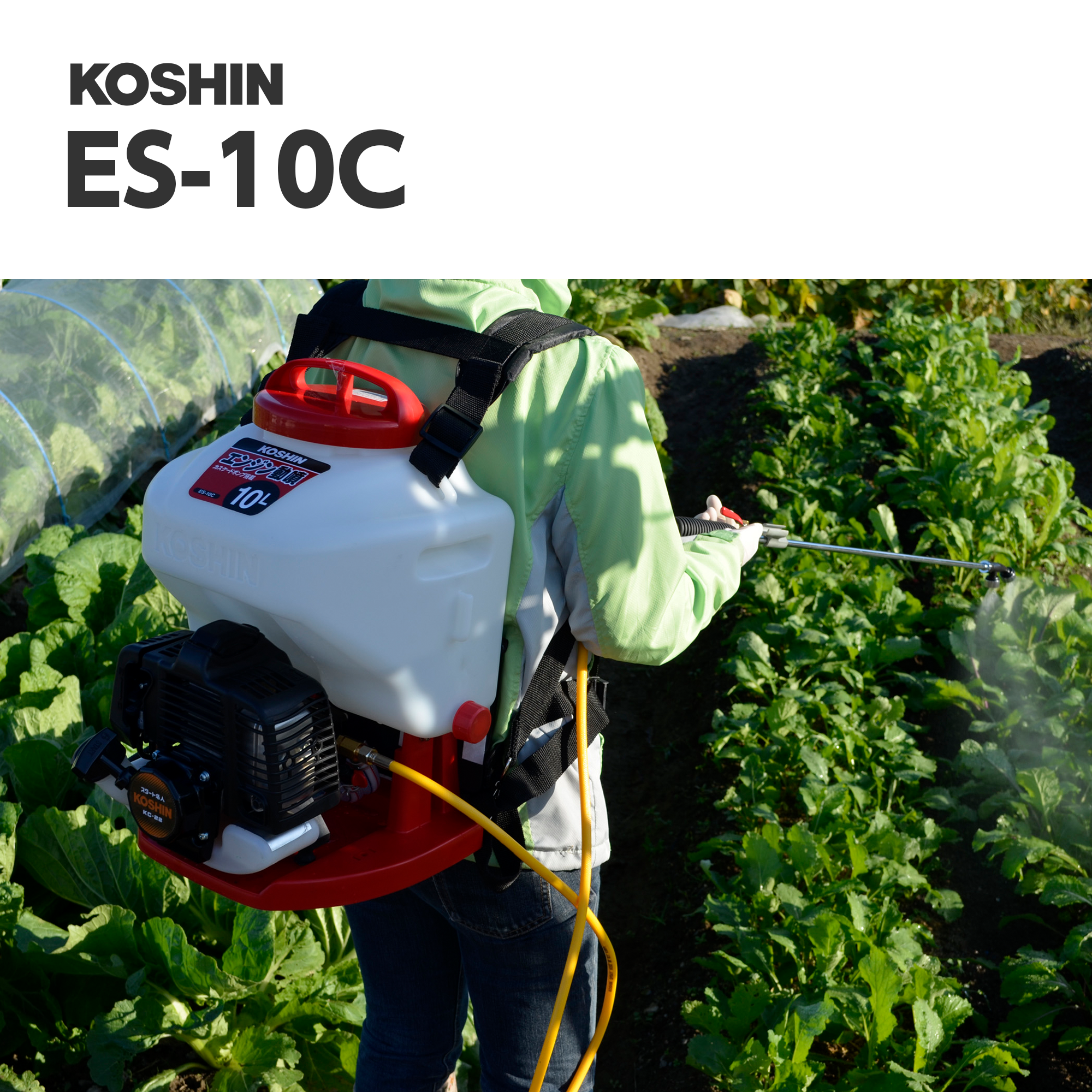

Sprayer Engine Driven ES Series ES-10C ES-10C

Double Function for Disinfection and Herbicide


• High pressure piston pump performs

Max. pressure 3.0 MPa (30 kgf/㎠)

Product category
Product name ES-10C-BAA-0
Pump_Type Cascade Pump
Pump_Capacity 10 L
Pump_Max Pressure 0.8 MPa (8 kgf/cm2)
Pump_Max Suction Volume 6L/min (1.58 USG/min)
Engine_Type Forced Air-cooled 2-stroke Gasoline Engine
Engine_Model Koshin KC22
Engine_Total Exhaust Volume 22.6 cm3
Engine_Continuous Operation Time Approx. 50 min
Delivery Hose φ6 mm x 1.5m (4.92 ft)
Adjustment of Pressure -
Nozzle Type Vertical 2 head Nozzle
Bubble Type Herbicide Nozzle
Accessories 1 Measurement Cup, 1 Ball Cock, 1 Grip,
1 Nozzle Pipe (60 cm)
Net weight
Gross weight 8.0 kg (17.6 lbs)
Product dimensions L x W x H 410 x 390 x 480 mm
Packing dimensions L x W x H
Packing Unit 1
