Agriculture & Garden Sprayer Engine Driven ES Series

Sprayer Engine Driven ES Series ES-20C ES-20C

Double Function for Disinfection and Herbicide


• High pressure piston pump performs

Max. pressure 3.0 MPa (30 kgf/㎠)

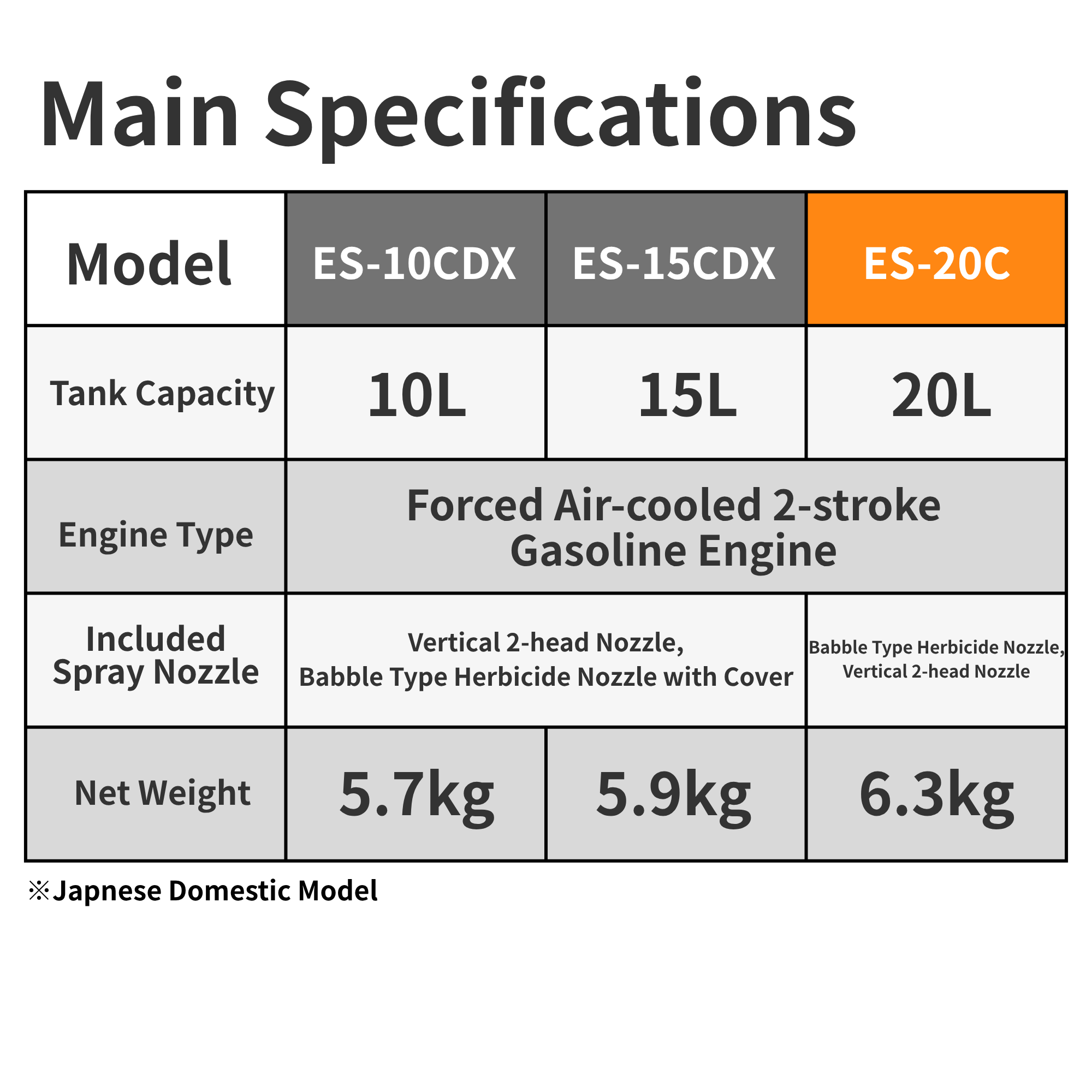

Product category
Product name ES-20C-AAA-0
Pump_Type Cascade Pump
Pump_Capacity 20 L
Pump_Max Pressure 0.8 MPa (8 kgf/cm2)
Pump_Max Suction Volume 6 L/min (1.58 USG/min)
Engine_Type Forced Air-cooled 2-stroke Gasoline Engine
Engine_Model Koshin KC22C
Engine_Total Exhaust Volume 22.6 cm3
Engine_Continuous Operation Time Approx. 50 min
Delivery Hose φ6 mm x 1.5m (4.92 ft)
Adjustment of Pressure -
Nozzle Type Vertical 2 head Nozzle
Bubble Type Herbicide Nozzle with Cover
Accessories 1 Measurement Cup, 1 Ball Cock, 1 Grip,
1 Nozzle Pipe ( 60 cm)
Net weight
Gross weight 9.0 kg (19.8 lbs)
Product dimensions L x W x H 450 x 310 x 567 mm
Packing dimensions L x W x H
Packing Unit 1

Performance curve and outline drawing
