Marine & Fishery Marine Battery Winch RES/REL Series (400W Type)

Marine Battery Winch RES/REL Series (400W Type) RES-4024L RES-4024L

Light weight & Compact Most Suitable for Fishing Boats

Application


• Winding anchor for boats

• Drawing fishing net

• Towing line

• Winding up basket

Product category
Product name RES-4024L
Voltage DC 24 V
Rated Current 25 A
Motor Output 400 W
Rating 1 h / 25 A
Roller Revolution 35 min-1 (Low) / 70 min-1 (High)
Manual_Max. 900 kg (Low) / 450 kg (High)
Manual_Rating 200 kg (Low) / 100 kg (High) / (25 A)
Capacity
Winch Speed 13 m/min (49 ft /min) (Low) / 23 m/min (82 ft/min) (High)
Net weight 24.6 kg (54.2 lbs)
Gross weight 26.4 kg (58.2 lbs)
Product dimensions L x W x H 560 x 265 x 270 mm
Packing dimensions L x W x H
Packing Unit 1

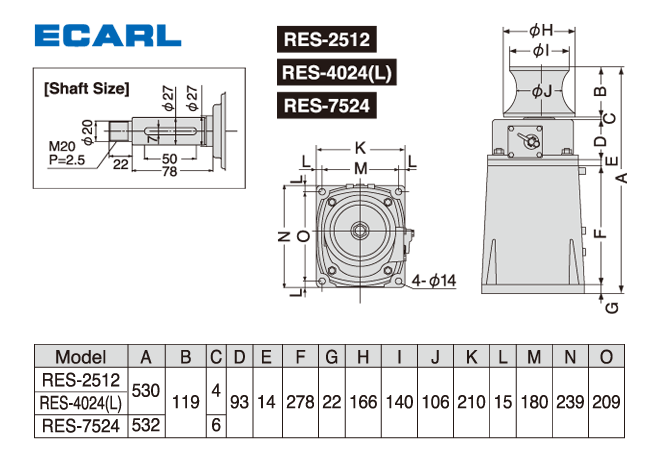

Performance curve and outline drawing
