Marine & Fishery Marine Battery Winch RES/REL Series (500W Type)

Marine Battery Winch RES/REL Series (500W Type) REL-5524LB REL-5524LB

Effective Electromagnetic Brake Model

Application


• Motor case is made of corrosion resistance aluminum alloy to withstand seawater.

• Possible to stop instantly.

• Winding anchor for boats

• Drawing fishing net

• Towing line

• Winding up basket

Model REL-5524LB
Voltage DC 24 V
Rated Current 31 A
Motor Output 550 W
Rating 1 h / 31 A
Roller Revolution 35 rpm (Low), 70 rpm (High)
Manual
Capacity
Max. 1000 kg (Low), 500 kg (High)
Rating 280 kg (Low), 140 kg (High)
Winch Speed
(With 100 kg Load)
13 m/min (42 ft/min) (Low)
23 m/min (75 ft/min) (High)
Electromagnetic
Brake
Static Friction Torque 4 N·m (0.4 kgf·m)
Rated Voltage DC 24 V
Rated Capacity 15 W
Standard Accessories 1 Waterproofing Plate,1 Vertical Type Main Body Packing,5 Machine Screws M5×20
Net Weight 20.8 kg (45.8 lbs)
Gross Weight 22.4 kg (49.3 lbs)
Dimensions L×W×H (mm) 540 × 248 × 278
Packing Unit 1

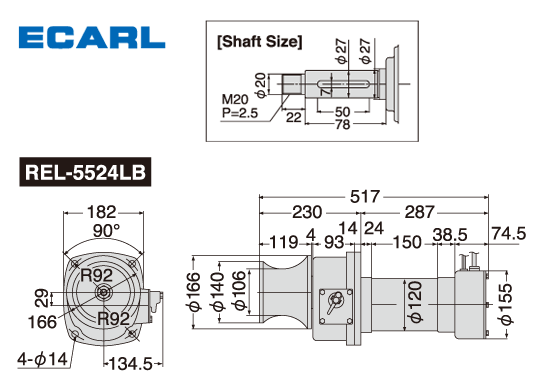

Performance curve and outline drawing
