Marine & Fishery Marine Bilge Pump BK/BK-S Series

Marine Bilge Pump BK/BK-S Series BK-24S BK-24S

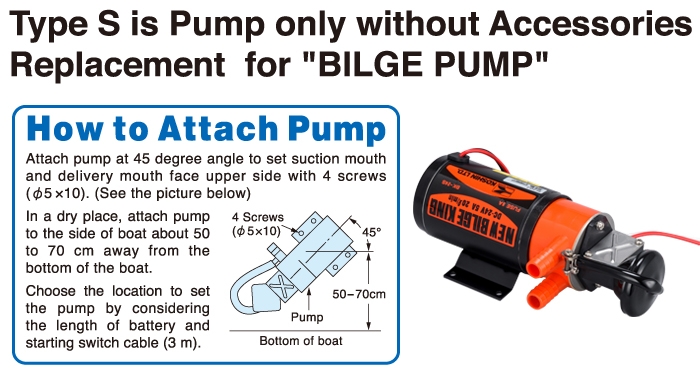

Type S is Pump only without Accessories Replacement for "BILGE PUMP"

Application



Introduction examples

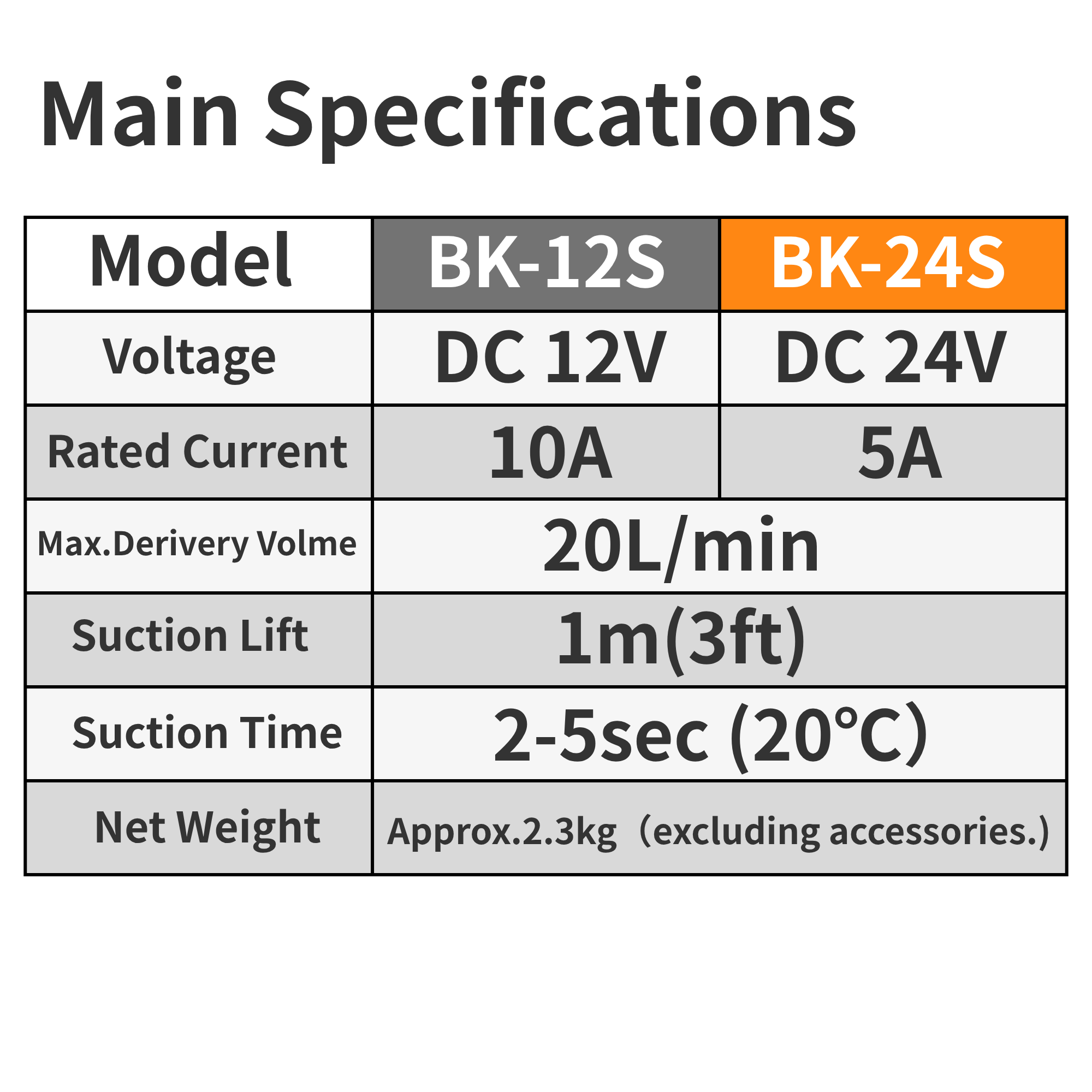

Model BK-24S
Suction / Delivery Dia 15 mm (½")
Max. Delivery Volume 20 L/min (5 USG/min)
Voltage DC 24 V
Rated Current 5 A
Suction Lift 1 m (3 ft)
Suction Time 2 - 5 sec (20 °C)
Rating 90 W
Standard Accessories
(*Type S : Not Included)
1 Code with Starting Switch, 1 Strainer, 1 Delivery Nozzle, 1 Delivery Nozzle Nat, 1 Hose (3 m),4 Tapping Screws (5×10), 4 Tapping Screws (4×20), 4 Tapping Screws (4×10),4 Tapping Screws (4×16), 1 Water Proofing Connector (Only S T ype)
1 Fuse (8 A)
Net Weight 2.3 kg (5.1 lbs)(1 unit)
Gross Weight 10 kg (22 lbs)(4 units)
Dimensions L×W×H (mm) 330 × 296 × 250
Packing Unit 4
*BK-12S, BK-24S is pump for replacement.
