Agriculture & Garden Engine Pump Clear Water Pump 2-4 Inch Pump CC Robin SE Series

Engine Pump Clear Water Pump 2-4 Inch Pump Robin (CC) SE Series SE-80X SE-80X

Strong & Durable Robin (CC) Engine

Application


Introduction examples


• Highly effective Mechanical Seal made with special Carbon Ceramics provides extra durability.

• Entire unit is protected by sturdy Rollover Pipe Frame.

• Strong and lightweight die-cast Aluminum Pump.

Product category
Product name SE-80X
Model name SE-80X-BAA-0
Pump_Connectiondia_Suction
Pump_Connectiondia_Discharge 80 mm (3 '''''''')
Pump_Connection thread Outer Pipe Thread
Pump_Total head 26 m (85 ft)
Pump_Discharge volume 930 L/min (246 USG/min)
Pump_Max. suction head
Engine_Type Forced Air-cooled 4-stroke Gasoline Engine
Engine_Model Robin EY203D
Engine_Displacement 183 cm3
Engine_Rated output 2.6 kW / 3600 min-1
Engine_Max. output 3.7 kW / 4000 min-1
Engine_Fuel Automotive non-leaded Gasoline
Engine_Fuel tank capacity 3.8 L
Engine_Engine oil
Engine_Engine oil capacity
Engine_Continuous operating time Abt 2.5h (full tank)
Engine_Starting method
Applicable liquids_Consistency
Applicable liquids_Suspended solid percentage
Applicable liquids_Max. solids size
Applicable liquids_Temperature
Accessories 1 Strainer, 2 Hose Couplings, 3 Hose bands, 1 Engine tool set
Net weight
Gross weight 35 kg
Product dimensions L x W x H
Packing dimensions L x W x H

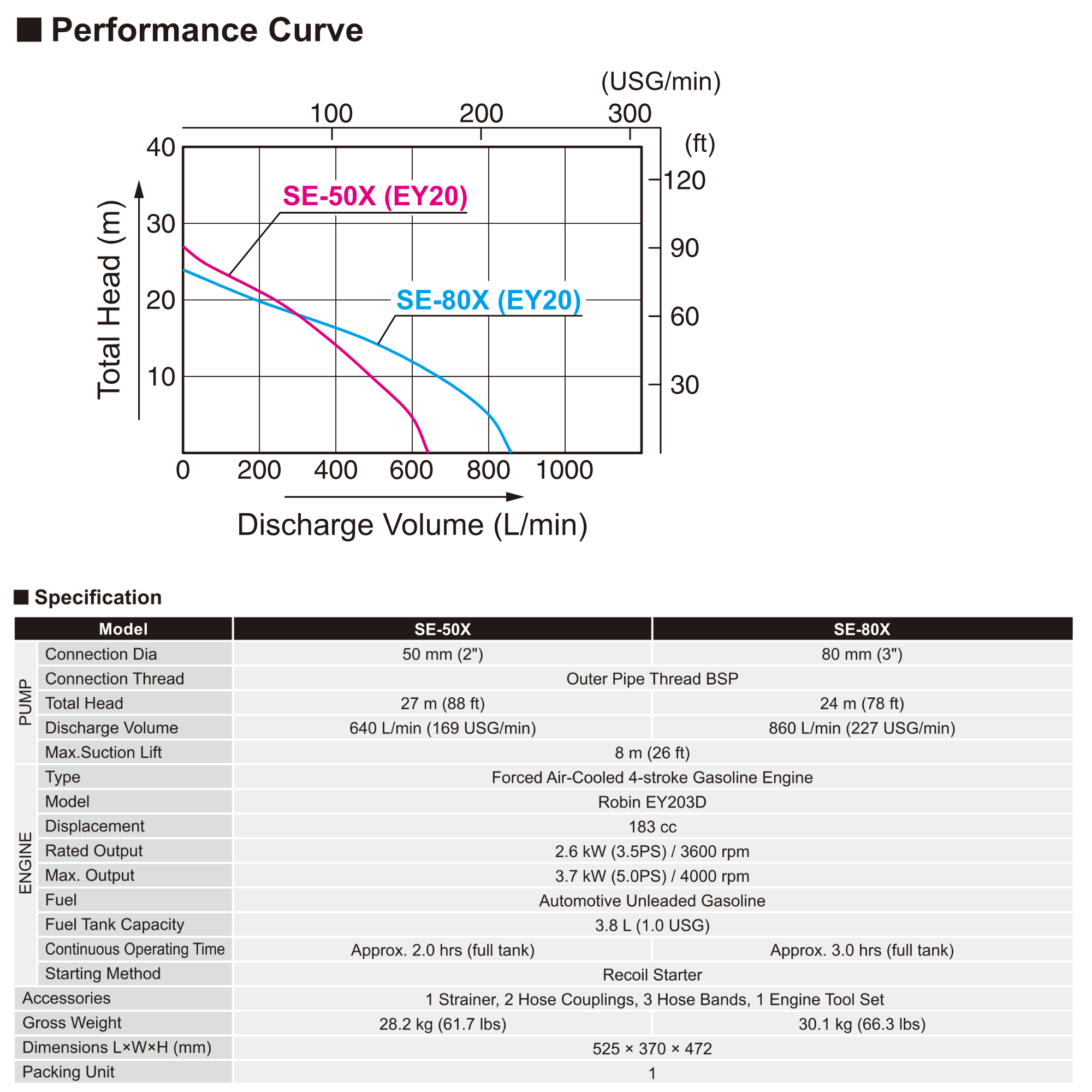

Performance curve and outline drawing
Document download

Optional parts


Support for this product


FAQ about CC Robin SE Series

FAQ aboutClear Water Pump 2-4 Inch Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
