Industrial Application Oil Pump Gear Pump GB/GC Series

Oil Pump Gear Pump GB Series GB-25 GB-25

"GEAR PUMPS" Suitable for Water, Oil & Various Liquids Applications

Application

• Water

• Sea water

• Weak acids

• Various chemicals

• Coal tar


Introduction examples



Model GB-25
Gear Material Brass
Connection Dia 25 mm (1")
Delivery Volume (400 rpm) 55 L/min(14 USG/min)
Delivery Pressure 0 - 0.3 MPa (0 - 3 kg/cm2)
Max. Suction Lift Max. 4 m (13.1 ft)
Power 750 W
Pulley 8" (200mm) × A1
Net Weight 11 kg (24.3 lbs) (1 unit)
Gross Weight 22.5 kg (49.6 lbs) (2 units)
Dimensions L×W×H (mm) 402 × 267 × 250
Packing Unit 2

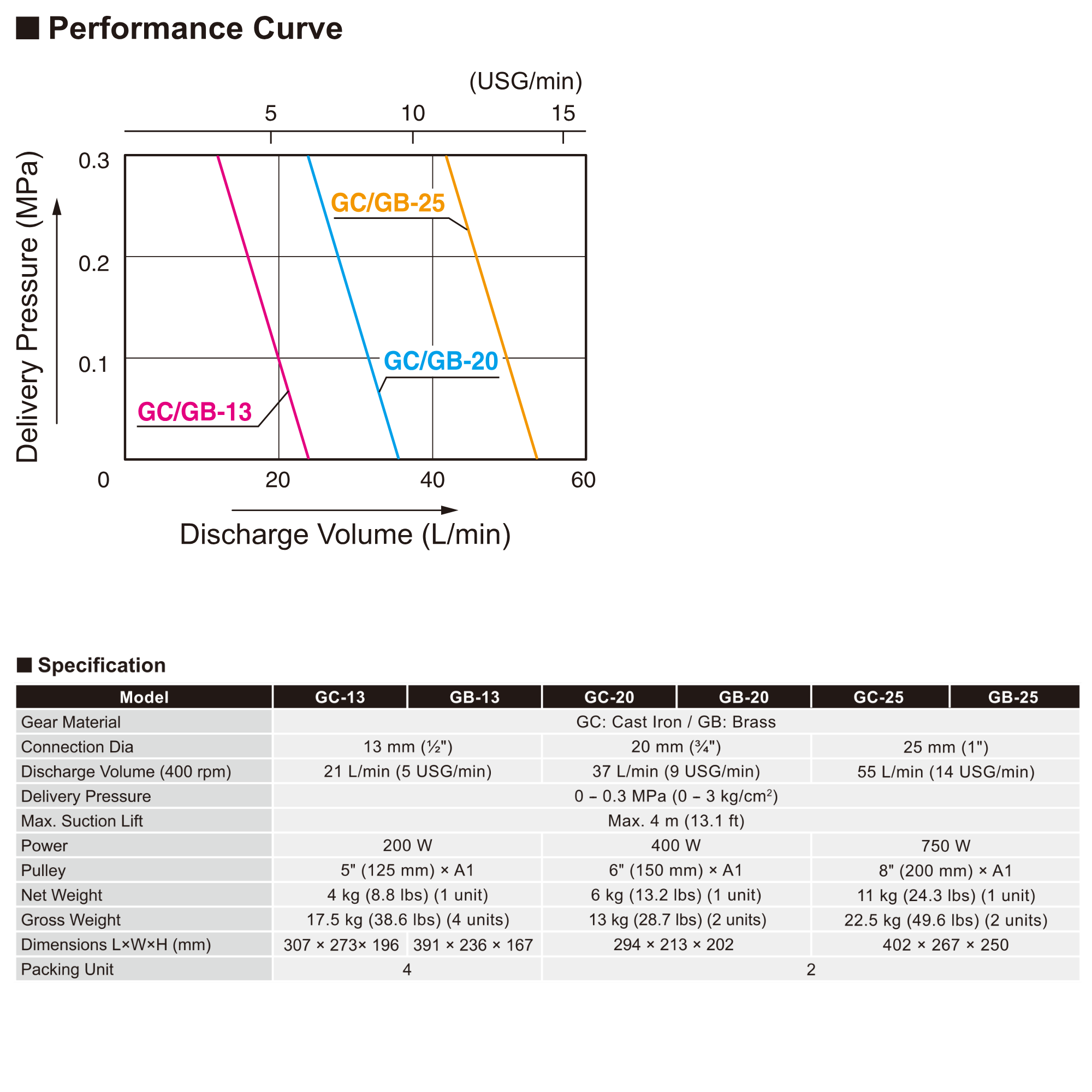

Performance curve and outline drawing
