"GEAR PUMPS" Suitable for Water, Oil & Various Liquids Applications
• Water
• Sea water
• Weak acids
• Various chemicals
• Coal tar

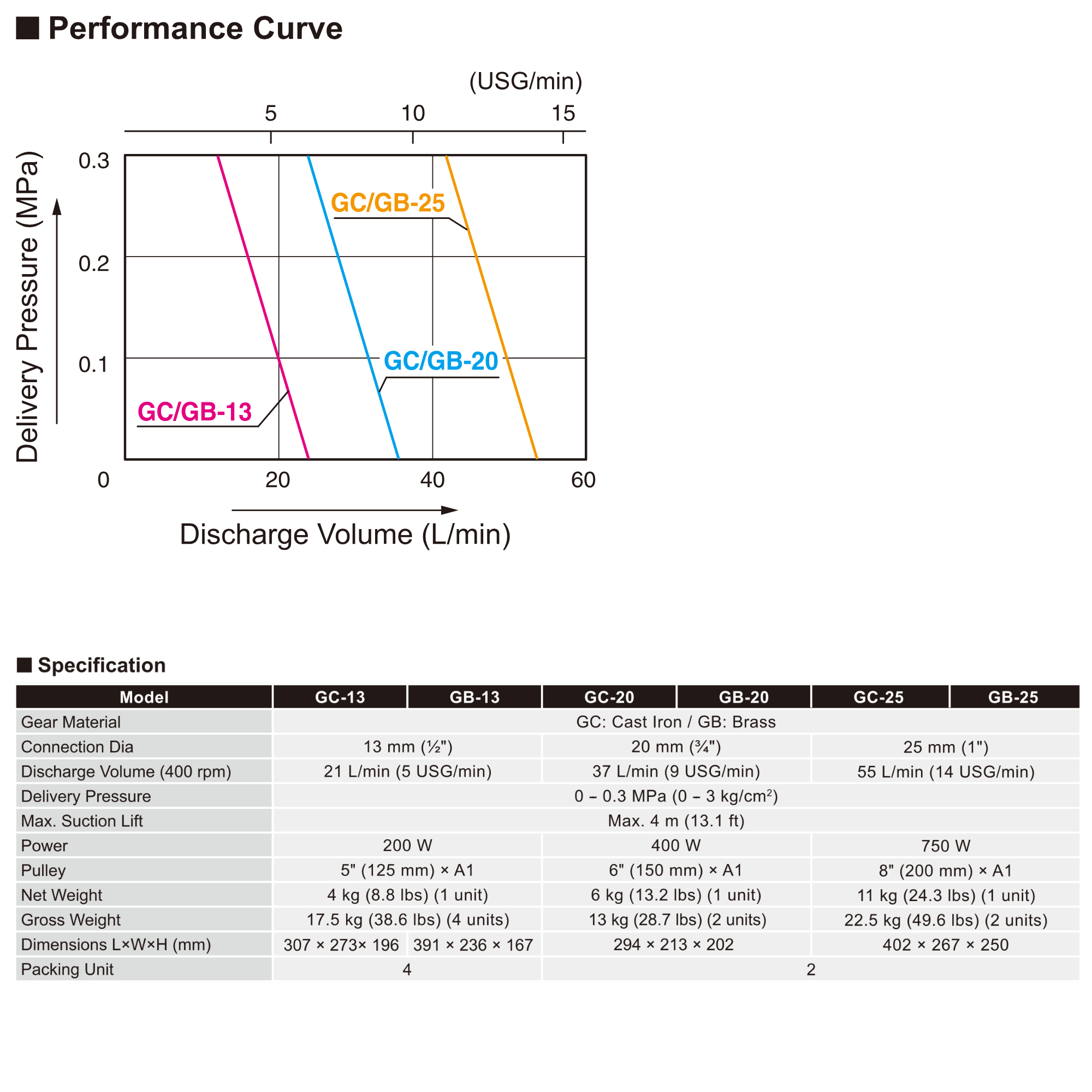

| Product category | - |
|---|---|
| Product name | GB-20 |
| Gear Material | GC: Cast lron /GB: Brass |
| Connection Dia | 20 mm (3/4 '') |
| Delivery Volume | 37 L/min (9 USG/min) |
| Delivery Pressure | 0-0.3 MPa (0-3 kg/cm2) |
| Max.Sucution Lift | Max. 4 m (13.1 ft) |
| Power | 400 W |
| Pulley | 5" (150 mm) ×A1 |
| Net weight | 6.0 kg (13.2 lbs) (1 unit) |
| Gross weight | 22.5 kg (49.6 lbs) (2 units) |
| Dimensions L x W x H(mm) | 482 x 252 x 179 mm |
| Packing Unit | 4 |
