Industrial Application Oil Pump Gear Pump GB/GC Series

Oil Pump Gear Pump GC Series GC-13 GC-13

"GEAR PUMPS" Suitable for Water, Oil & Various Liquids Applications

Application

• Kerosene

• Light oil

• Machine oil

• Heavy oil

• Water


Model GC-13
Gear Material Cast Iron
Connection Dia 13 mm (½")
Delivery Volume (400 rpm) 21 L/min(5 USG/min)
Delivery Pressure 0 - 0.3 MPa (0 - 3 kg/cm2)
Max. Suction Lift Max. 4 m (13.1 ft)
Power 200 W
Pulley 5" (125mm) × A1
Net Weight 4 kg (8.8 lbs) (1 unit)
Gross Weight 17.5 kg (38.6 lbs) (4 units)
Dimensions L×W×H (mm) 391 × 236 × 167
Packing Unit 4

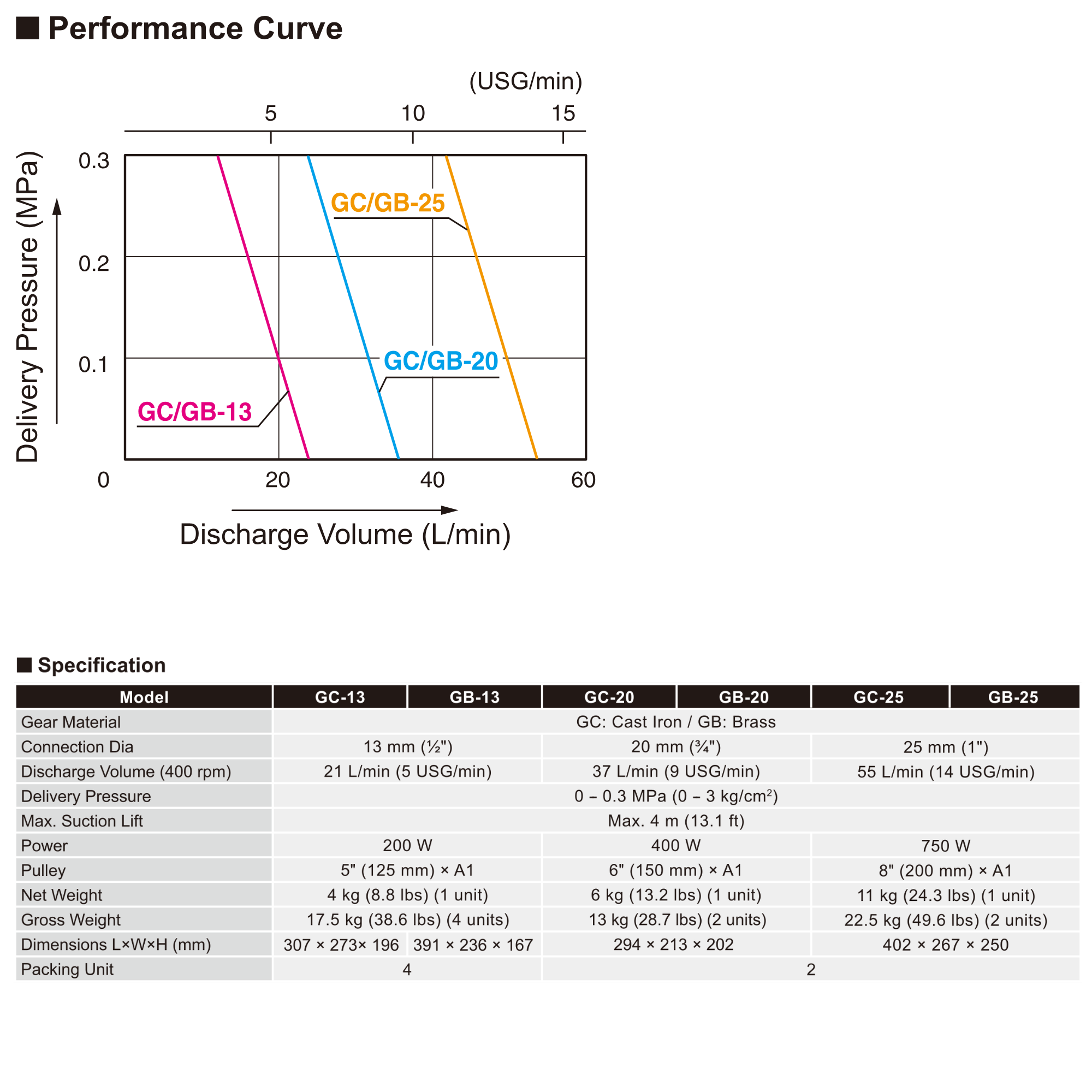

Performance curve and outline drawing
