Industrial Application
Oil Pump
Electric Fill Pump
FD/FA/FR Series
Oil Pump Electric Fill Pump FD Series FD-12 FD-12
Application
• Low viscosity oil
• Heavy fuel oil A
• Kerosene
• Diesel
• Light oil

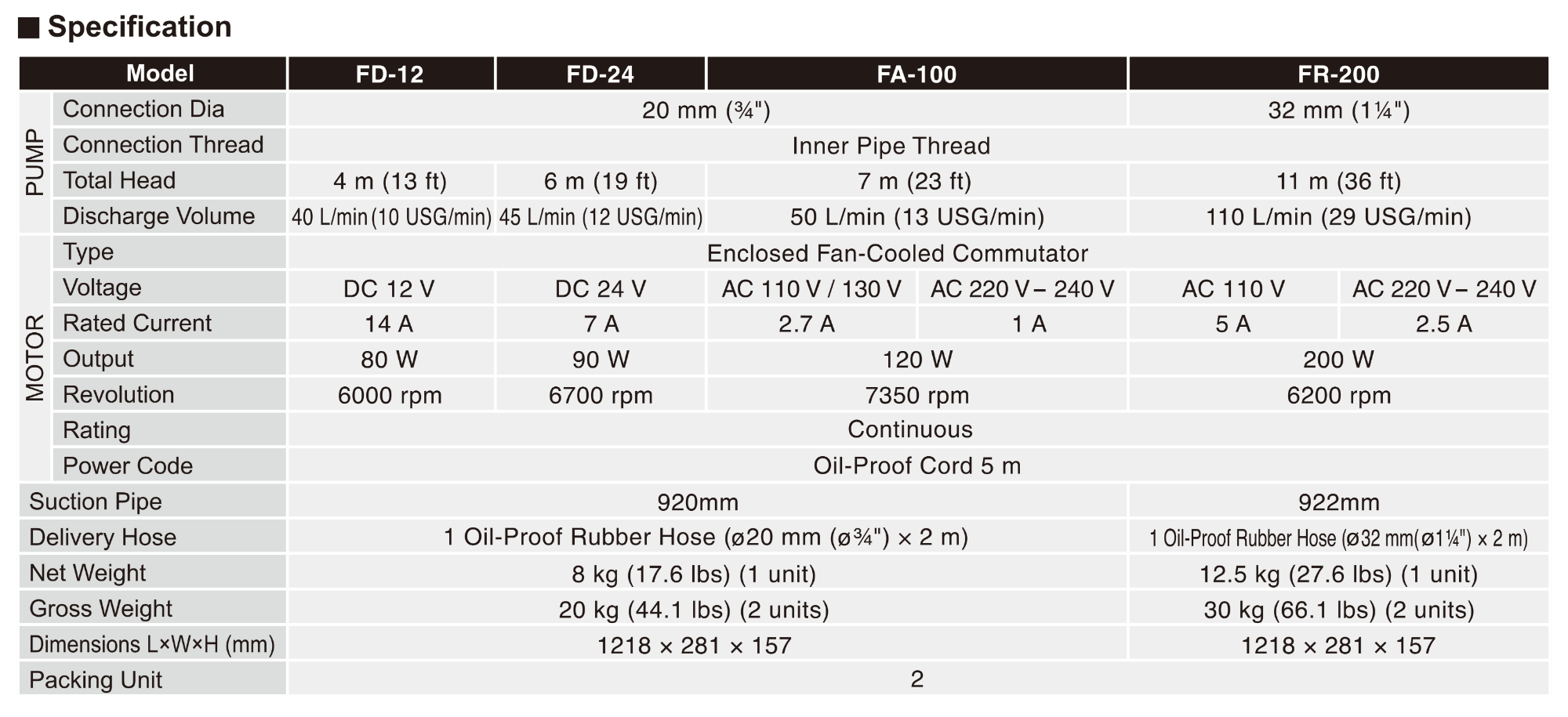

| Product category |
|
| Product name |
|
| Pump_Connection Dia |
20 mm(3/4") |
| Pump_Connection Thread |
Inner Pipe Thread |
| Pump_Total Head |
4 m (13 ft) |
| Pump_Delivery Volume |
40 L/min (10 USG/min) |
| Motor_Type |
Enclosed Fan-Cooled Commutator |
| Motor_Voltage |
DC 12 V |
| Motor_Output |
80 W |
| Motor_Revolution |
6000 rpm |
| Motor_Rating |
Continuous |
| Motor_Power cord |
Oil-Proof Cord 5 m |
| Suction Pipe |
920 m |
| Delivery Hose |
1 Oil-Proof Rubber Hose (φ20mm(φ 3/4 ")×2 m) |
| Net Weight |
8 kg (17.6 lbs) (1 unit) |
| Gross Weight |
20 kg (44.1 lbs) (2 units) |
| Dimensions L×W×H (mm) |
1218 × 281 × 157 |
| Packing Unit |
2 |
