"GEAR PUMP" GL Series for Low Viscosity Oil
• Kerosene
• Machine oil
• Heavy oil
• Light oil
• Safety by-pass function protects pump.
• For oil transfer

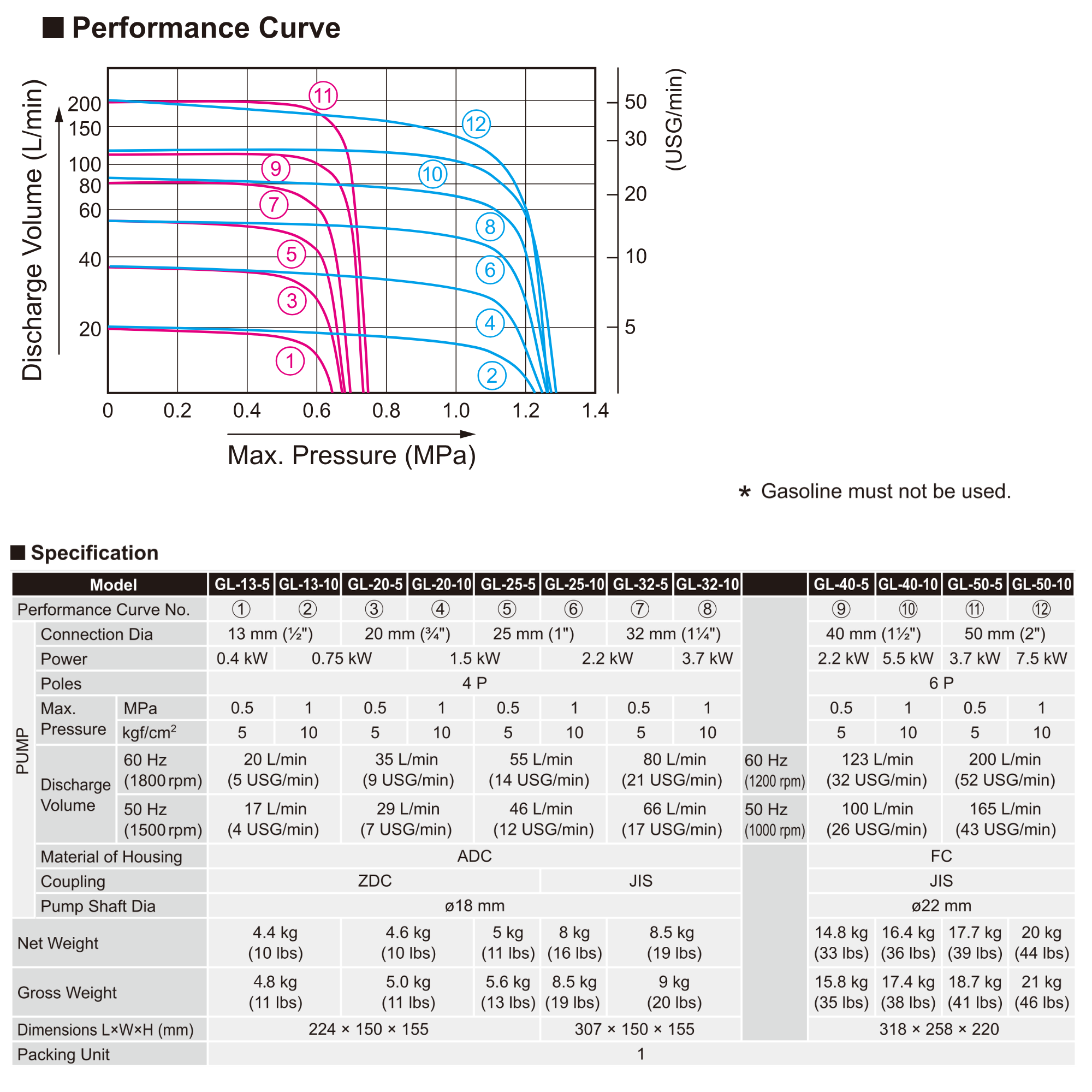

| Product category | - |
|---|---|
| Product name | GL-13-5 |
| Pump_Connection Dia | 13 mm (1/2 '') |
| Pump_Power | 0.4 kW |
| Pump_Poles | 4 P |
| Pump_Pressure_Mpa | 0.5 |
| Pump_Pressure_kgf/cm2 | 5 |
| Pump_Delivery Volume_60 Hz (1200 rpm) | 20 L/min (5 USG/min) |
| Pump_Delivery Volume_50 Hz (1000 rpm) | 17 L/min (4 USG/min) |
| Pump_Material of Housing | ADC |
| Pump_Coupling | ZDC |
| Pump_Pump Shaft Dia | φ 18mm |
| Accessories | - |
| Net weight | 4.4 kg (9.7 lbs) |
| Gross weight | 4.8 kg (10.5 lbs) |
| Product dimensions L x W x H | 224 x 150 x 155 mm |
| Packing dimensions L x W x H | - |
| Packing Unit | 1 |
