Industrial Application Oil Pump Gear Pump GL Series

Oil Pump Gear Pump GL Series GL-32-5 GL-32-5

"GEAR PUMP" GL Series for Low Viscosity Oil

Application

• Kerosene

• Machine oil

• Heavy oil

• Light oil


• Safety by-pass function protects pump.

• For oil transfer

Model GL-32-5
Performance Curve No.
P
U
M
P
Connection Dia 32 mm (1¼")
Power 2.2 kW
Poles 4 P
Max.
Pressure
MPa 0.5
kgf/cm2 5
Delivery
Volume
60 Hz
(1800 rpm)
80 L/min
(21 USG/min)
50 Hz
(1500 rpm)
66 L/min
(17 USG/min)
Material of Housing ADC
Coupling JIS
Pump Shaft Dia φ 18 mm
Net Weight 8.5 kg (19 lbs)
Gross Weight 9 kg (20 lbs)
Dimensions L×W×H (mm) 307 × 150 × 155
Packing Unit 1

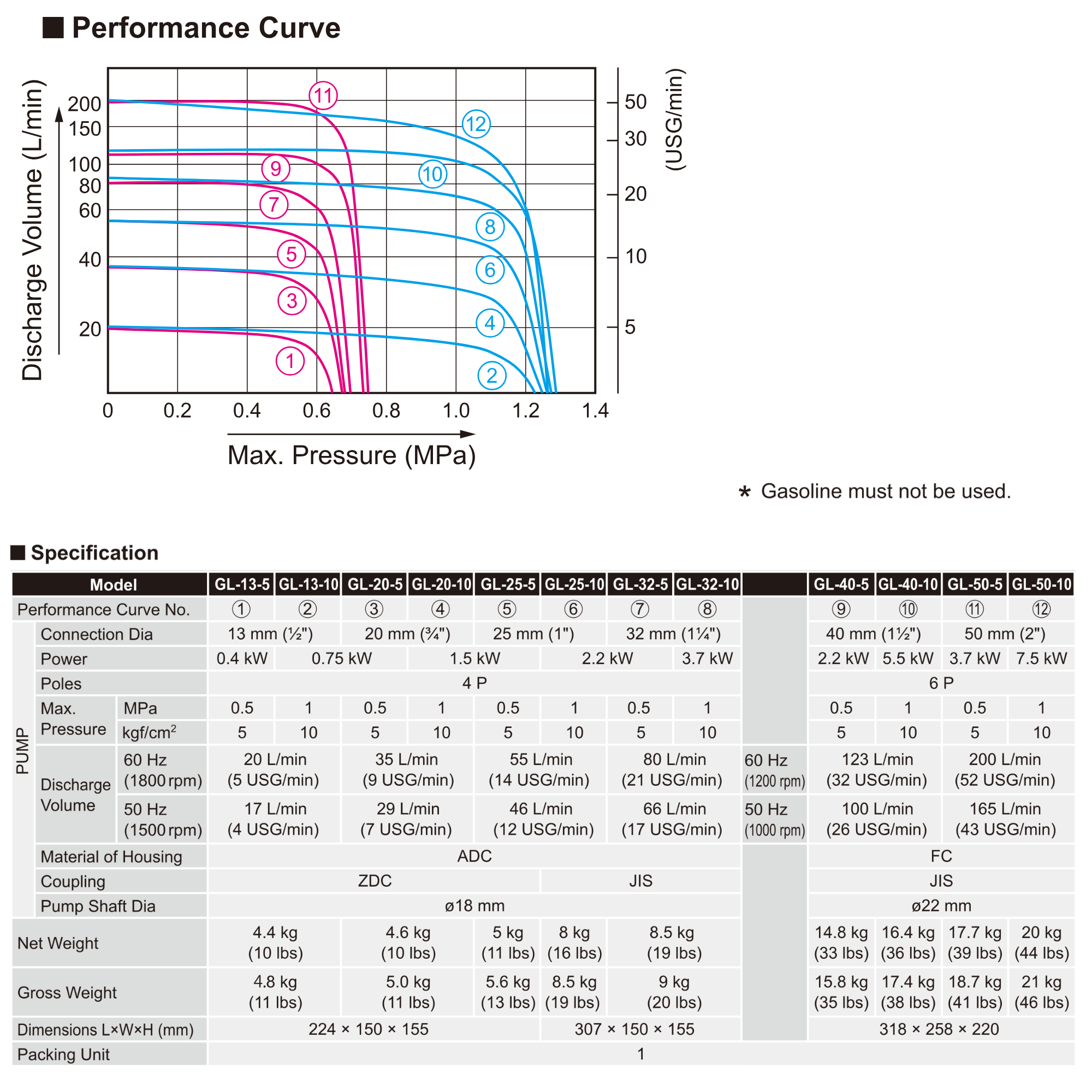

Performance curve and outline drawing
