Industrial Application Oil Pump Gear Pump GL Series

Oil Pump Gear Pump GL Series GL-50-5 GL-50-5

"GEAR PUMP" GL Series for Low Viscosity Oil

Application

• Kerosene

• Machine oil

• Heavy oil

• Light oil


• Safety by-pass function protects pump.

• For oil transfer

Model GL-50-5
Performance Curve No.
P
U
M
P
Connection Dia 50 mm (2")
Power 3.7 kW
Poles 6 P
Max.
Pressure
MPa 0.5
kgf/cm2 5
Delivery
Volume
60 Hz
(1200 rpm)
200 L/min
(52 USG/min)
50 Hz
(1000 rpm)
165 L/min
(43 USG/min)
Material of Housing FC
Coupling JIS
Pump Shaft Dia φ22mm
Net Weight 26 kg (57 lbs)
Gross Weight 27 kg (60 lbs)
Dimensions L×W×H (mm) 318 × 258 × 220
Packing Unit 1

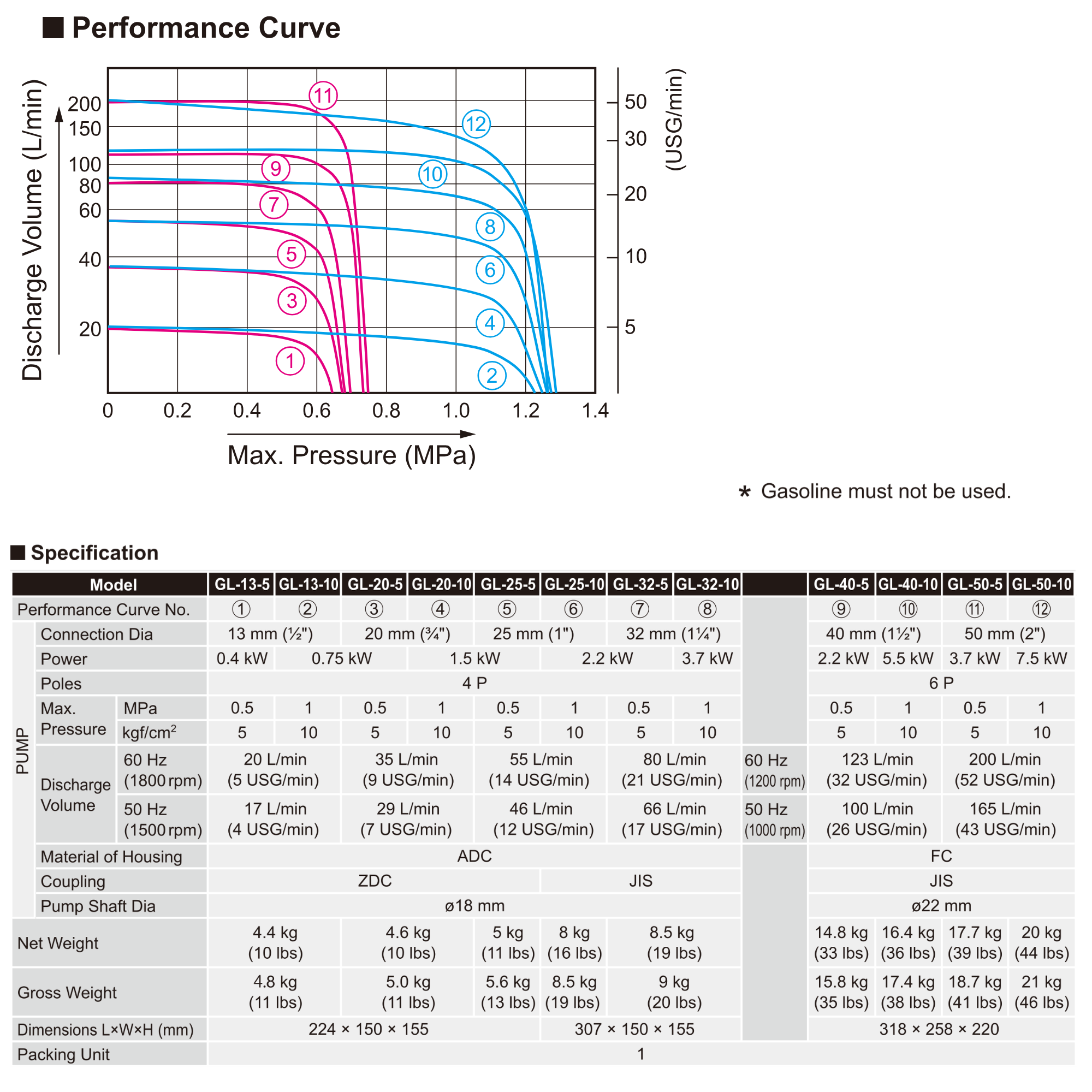

Performance curve and outline drawing
