Industrial Application Oil Pump Gear Pump GL Series

Oil Pump Gear Pump GL Series GL-20-10 GL-20-10

"GEAR PUMP" GL Series for Low Viscosity Oil

Application

• Kerosene

• Machine oil

• Heavy oil

• Light oil


• Safety by-pass function protects pump.

• For oil transfer

Model GL-20-10
Performance Curve No.
P
U
M
P
Connection Dia 20 mm (¾")
Power 1.5 kW
Poles 4 P
Max.
Pressure
MPa 1
kgf/cm2 10
Delivery
Volume
60 Hz
(1800 rpm)
35 L/min
(9 USG/min)
50 Hz
(1500 rpm)
29 L/min
(7 USG/min)
Material of Housing ADC
Coupling ZDC
Pump Shaft Dia φ 18 mm
Net Weight 4.6 kg (10 lbs)
Gross Weight 5.0 kg (11 lbs)
Dimensions L×W×H (mm) 224 × 150 × 155
Packing Unit 1

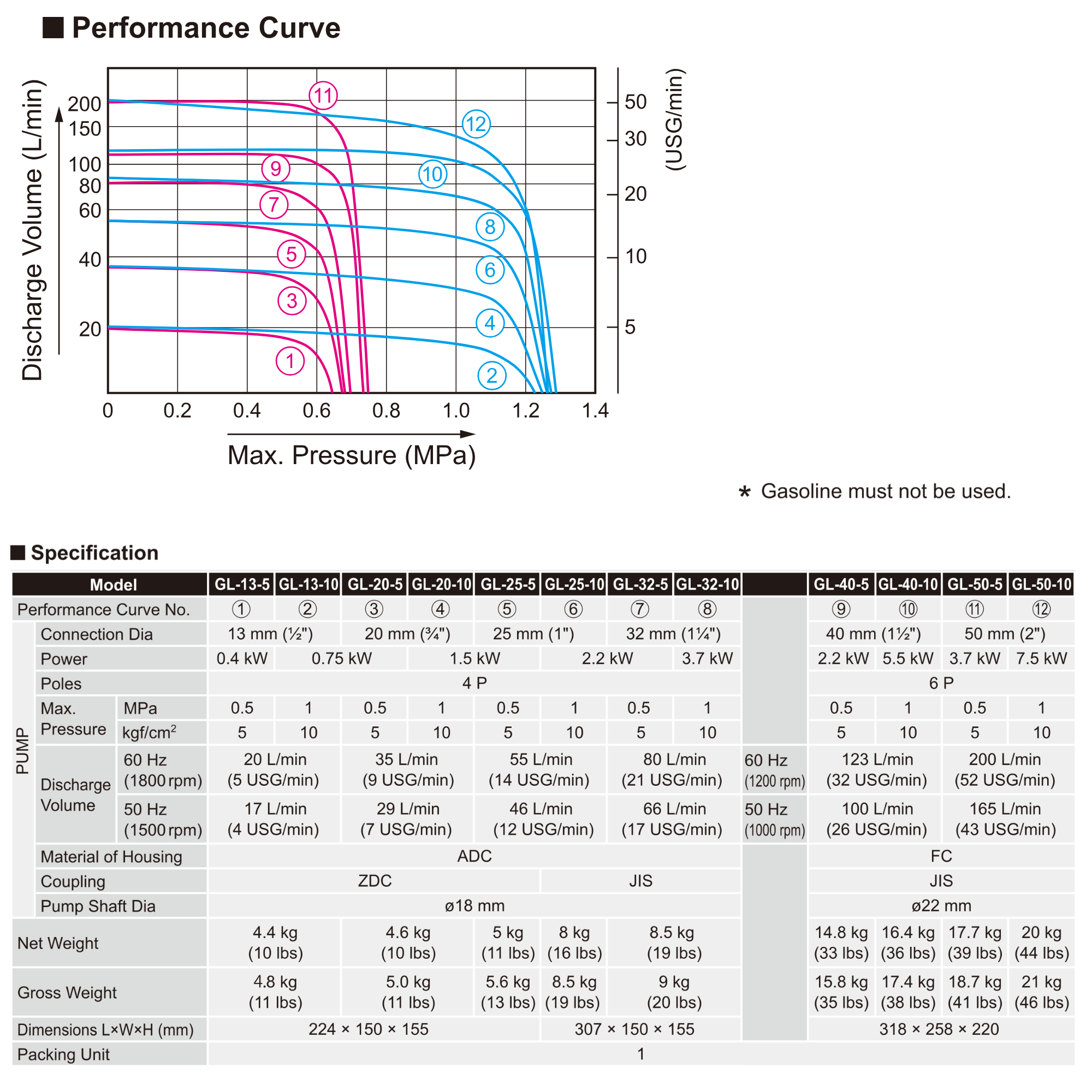

Performance curve and outline drawing
