Industrial Application Oil Pump Gear Pump GL Series

Oil Pump Gear Pump GL Series GL-40-10 GL-40-10

"GEAR PUMP" GL Series for Low Viscosity Oil

Application

• Kerosene

• Machine oil

• Heavy oil

• Light oil


• Safety by-pass function protects pump.

• For oil transfer

Model GL-40-10
Performance Curve No.
P
U
M
P
Connection Dia 40 mm (1½")
Power 5.5 kW
Poles 6 P
Max.
Pressure
MPa 1
kgf/cm2 10
Delivery
Volume
60 Hz
(1200 rpm)
123 L/min
(32 USG/min)
50 Hz
(1000 rpm)
100 L/min
(26 USG/min)
Material of Housing FC
Coupling JIS
Pump Shaft Dia φ22mm
Net Weight 24 kg (53 lbs)
Gross Weight 25 kg (55 lbs)
Dimensions L×W×H (mm) 318 × 258 × 220
Packing Unit 1

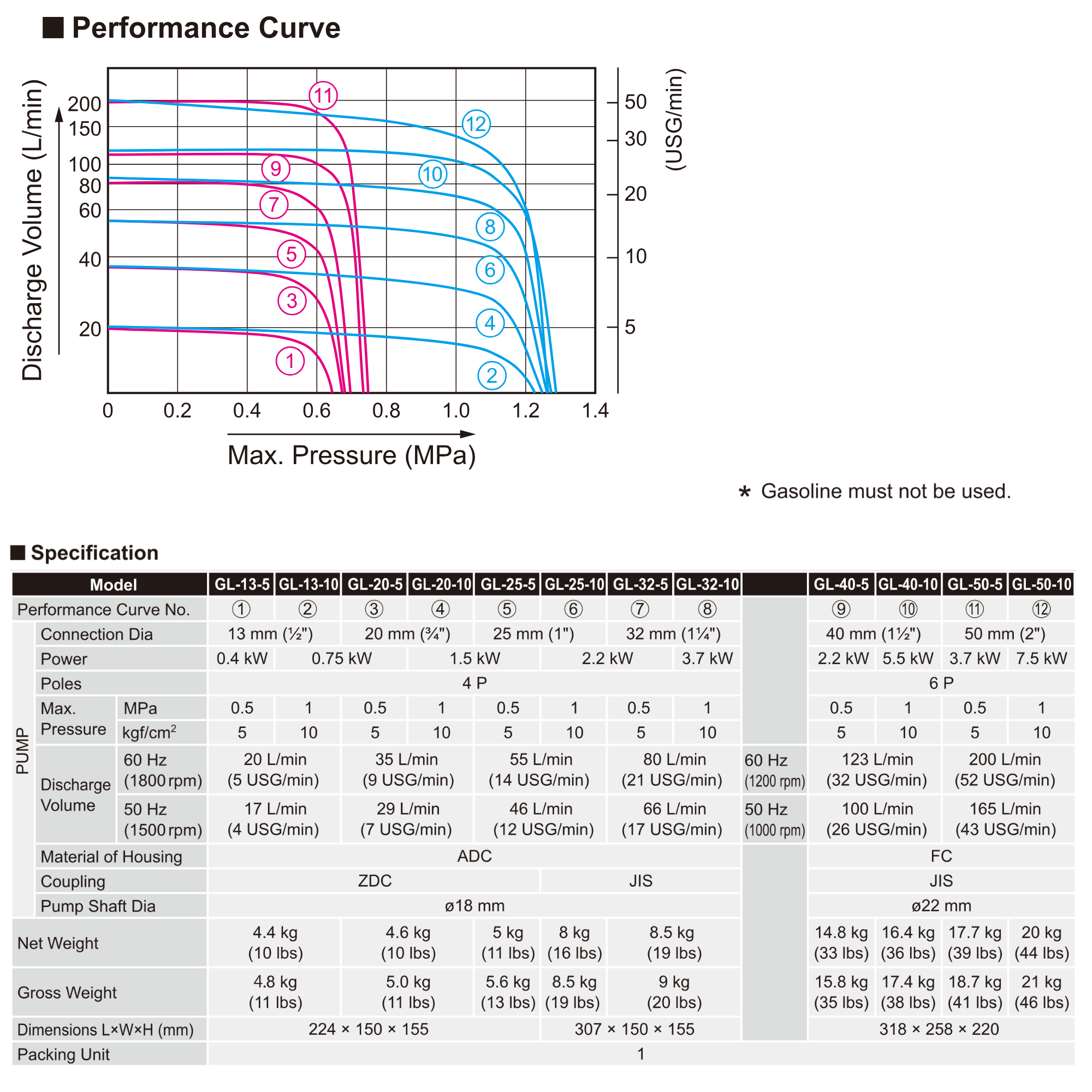

Performance curve and outline drawing
