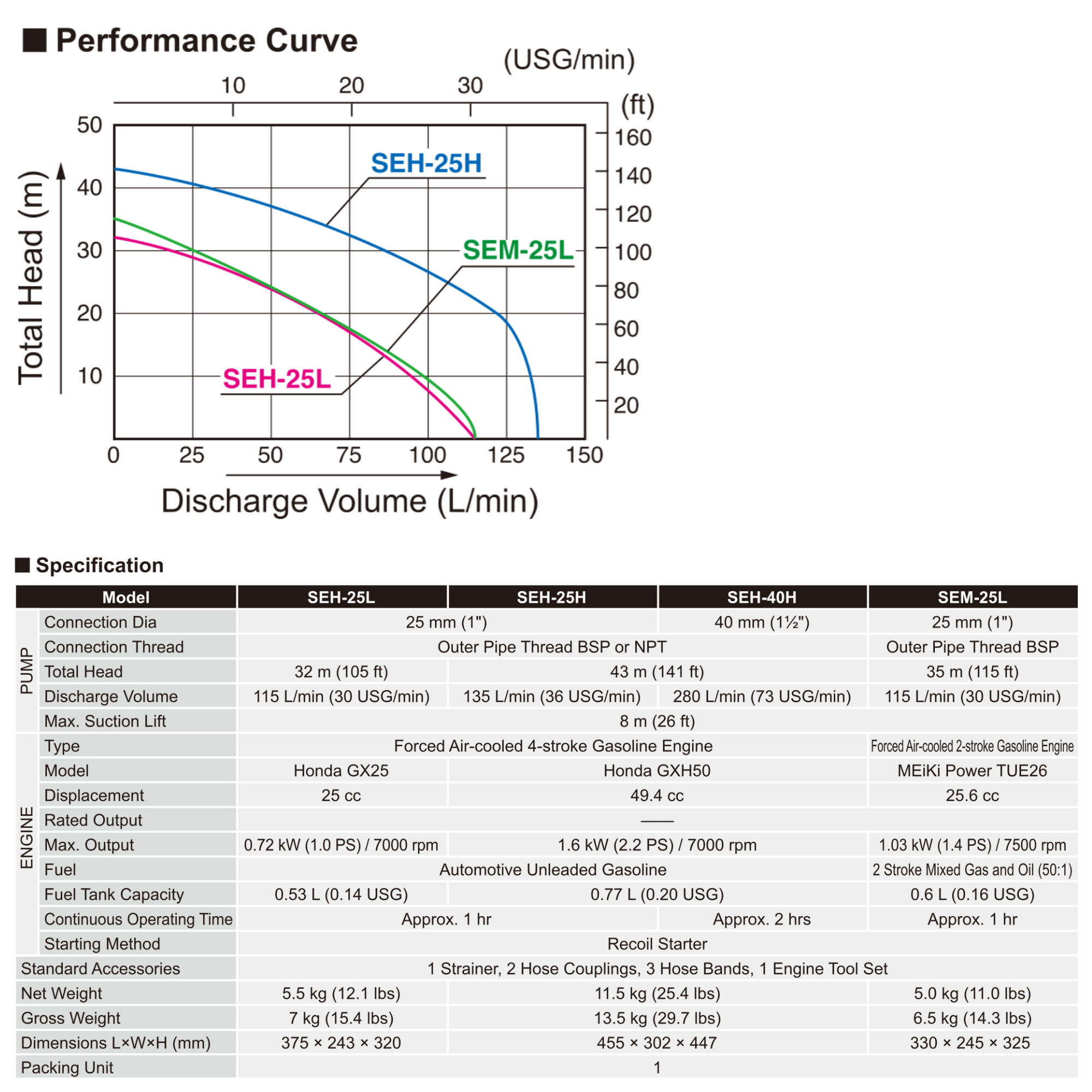

| Product category | |
|---|---|
| Product name | SEM-25L |
| Model name | SEM-25L-BAA-3 |
| Pump_Connection dia_Suction | 25 mm (1 '') |
| Pump_Connection dia_Discharge | |
| Pump_Connection thread | Outer Pipe Thread BSP |
| Pump_Total head | 35 m (115 ft) |
| Pump_Discharge volume | 115 L/min (30 USG/min) |
| Pump_Max. suction head | 8 m (26 ft) |
| Engine_Type | Forced Air-cooled 2-stroke Gasoline Engine |
| Engine_Model | Mitsubishi TU26 |
| Engine_Displacement | 25.6 cm3 |
| Engine_Rated output | |
| Engine_Max. output | 1.03kW (1.4ps ) / 7500 min-1 |
| Engine_Fuel | 2 Stroke Mixed Gas and Oil (25:1) |
| Engine_Fuel tank capacity | 0.6 L (0.16 USG) |
| Engine_Engine oil | |
| Engine_Engine oil capacity | |
| Engine_Continuous operating time | Approx. 1 hrs |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | |
| Applicable liquids_Suspended solid percentage | |
| Applicable liquids_Max. solids size | |
| Applicable liquids_Temperature | |
| Accessories | 1 Strainer, 2 Hose CoupIings, 3 Hose Bands, 1 Engine tool Set |
| Net weight | 5.0 kg (11.0 lbs) |
| Gross weight | 6.5 kg (14.3 lbs) |
| Product dimensions L x W x H | 330 x 245 x 325 mm |
| Packing dimensions L x W x H |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
