Products

Agriculture & Garden Engine Pump High Pressure Pump Honda SERH Series

Engine Pump High Pressure Pump Honda SERH Series SERH-50F SERH-50F

Suitable for Sprinkler (System) & General Irrigation

Application


Introduction examples



Product category Engine Pump - High Pressure Pump - Honda SERH Series
Product name SERH-50F
Model name SERH-50F-BAA-2
Pump_Connectiondia_Suction 50 mm(2 '') /25 mm(1 '')
Pump_Connectiondia_Discharge 50 mm(2 '') /25 mm(1 '')
Pump_Connection thread Outer Pipe Thread BSP
Pump_Total head 57 m(187 ft)
Pump_Discharge volume 440 L/min (116 USG/min)
Pump_Max. suction head 8m(26ft)
Engine_Type Forced Air-Cooled 4-Stroke Gasoline Engine
Engine_Model Honda GX 160
Engine_Displacement 163 cm3
Engine_Rated output 2.9 kW (3.9 PS) /3600 min-1
Engine_Max. output 3.6 kW (4.9 PS)
Engine_Fuel Automotive Unleaded Gasoline
Engine_Fuel tank capacity 3.1 L(0.82 USG)
Engine_Engine oil
Engine_Engine oil capacity
Engine_Continuous operating time Approx. 2 hours (full tank)
Engine_Starting method Recoil starter
Applicable liquids_Consistency
Applicable liquids_Suspended solid percentage
Applicable liquids_Max. solids size
Applicable liquids_Temperature
Accessories 2 Coupling Set (50), 1 Check Plate (50), 2 Check Coupling Sets (25), 2 Hose Nipple (25), 1 Engine Tool Set
Net weight 31.0 kg(68.3 lbs)
Gross weight 34.0 kg(74.9 lbs)
Product dimensions L x W x H 535 × 405 × 445 mm

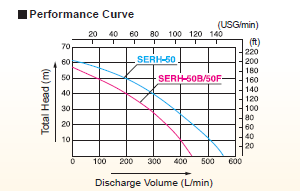

Performance curve and outline drawing
Document download

Optional parts


Support for this product


FAQ about Honda SERH Series

FAQ aboutHigh Pressure Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
