• Compact & lightweight high pressure pump
•3 way discharge flange [2"×1,1"×2]

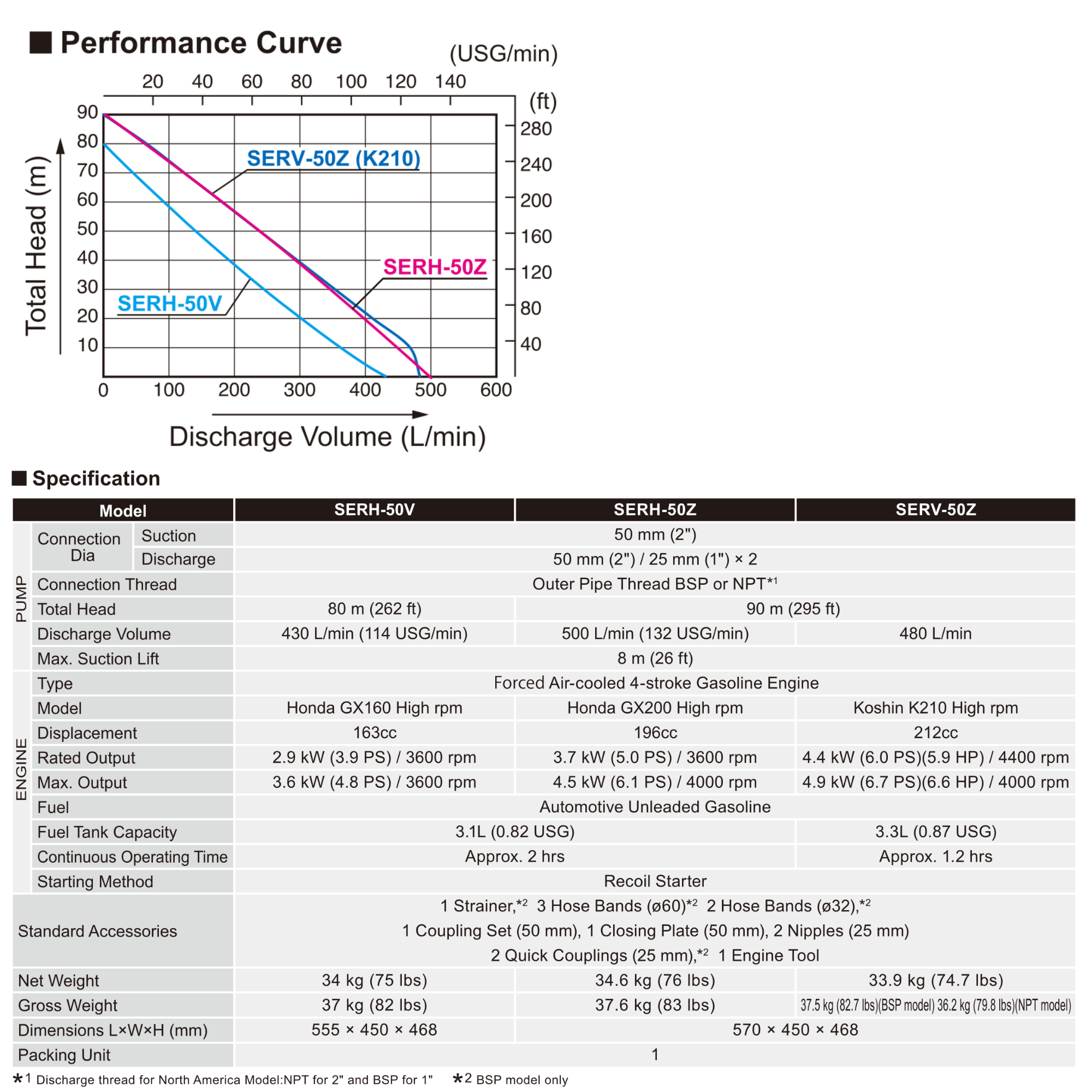

| Product category | Engine Pump - High Pressure Pump - Honda SERH-V Series |
|---|---|
| Product name | SERH-50V |
| Model name | SERH-50V-BAA-2 |
| Pump_Connectiondia_Suction | 50 mm (2 '') |
| Pump_Connectiondia_Discharge | 50 mm (2 '') |
| Pump_Connection thread | |
| Pump_Total head | 80 m (262ft) |
| Pump_Discharge volume | 430 L/min (114 USG/min) |
| Pump_Max. suction head | |
| Engine_Type | HONDA 4-stroke |
| Engine_Model | HONDA GX160, Hi-Revolution |
| Engine_Displacement | 163 cm3 |
| Engine_Rated output | |
| Engine_Max. output | |
| Engine_Fuel | Automobile gasoline |
| Engine_Fuel tank capacity | 3.1 L (0.82 USG) |
| Engine_Engine oil | |
| Engine_Engine oil capacity | |
| Engine_Continuous operating time | |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | |
| Applicable liquids_Suspended solid percentage | |
| Applicable liquids_Max. solids size | |
| Applicable liquids_Temperature | |
| Accessories | Tool kit (Engine)/Instruction manual/Strainer (1 PC)/Pipe joint assy (4 PCS)/Hose band (5 PCS) |
| Net weight | 34.0 kg (74.9 lbs) |
| Gross weight | 37.0 kg (81.5 lbs) |
| Product dimensions L x W x H | |
| Packing dimensions L x W x H | 555 × 450 × 468 mm |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
