• Compact & lightweight high pressure pump
•3 way discharge flange [2"×1,1"×2]
| Product category | Engine Pump - High Pressure Pump - Honda SERH Series |
|---|---|
| Product name | SERH-50Z |
| Model name | SERH-50Z-BAA-2 |
| Pump_Connectiondia_Suction | 50 mm (2 '''') |
| Pump_Connectiondia_Discharge | 50 mm (2 '''') |
| Pump_Connection thread | |

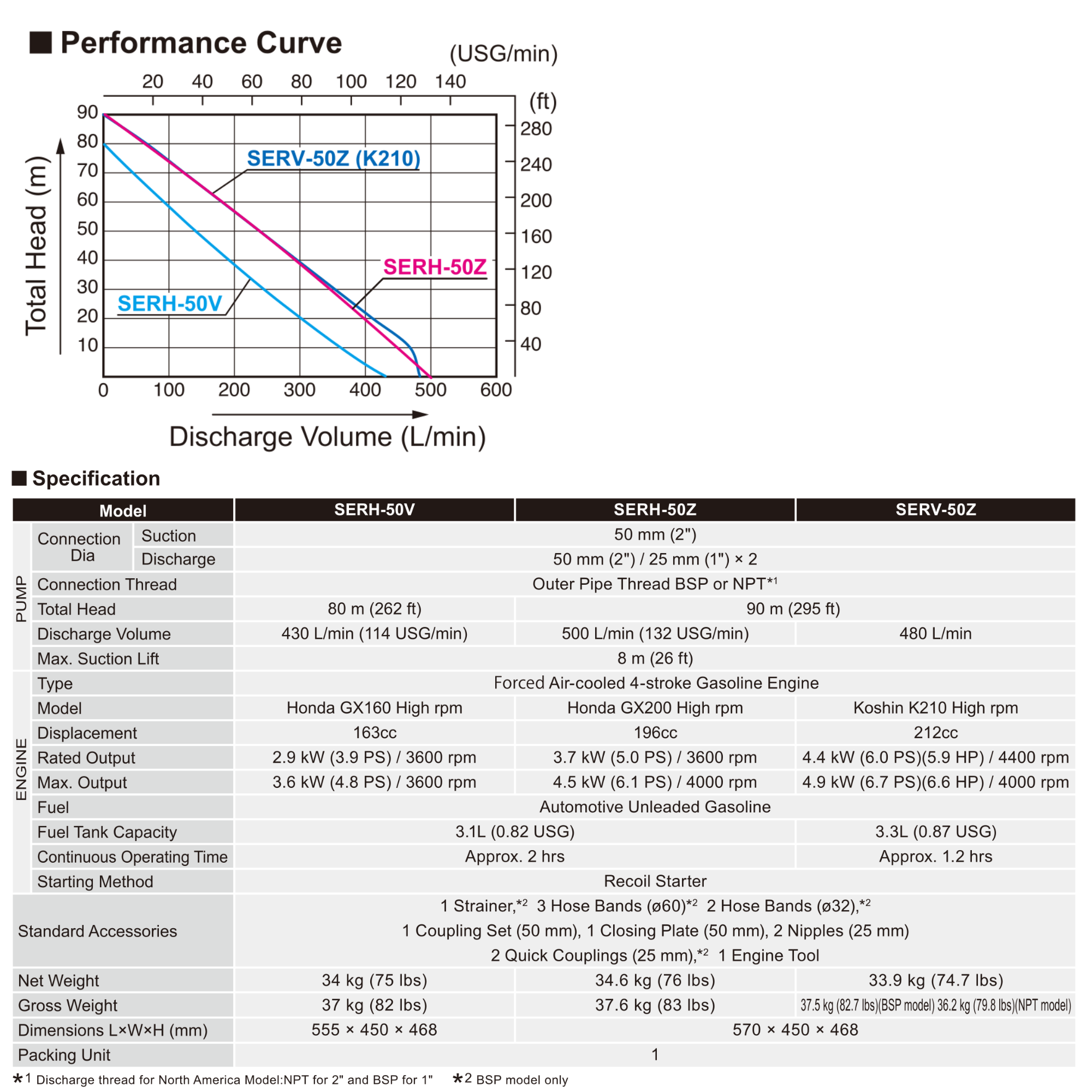

| Pump_Total head | 90 m (295 ft) |
| Pump_Discharge volume | 500 L/min (132 USG/min) |
| Pump_Max. suction head | 8m(26ft) |
| Engine_Type | HONDA 4-stroke |
| Engine_Model | HONDA GX200, Hi-Revolution |
| Engine_Displacement | 196 cm3 |
| Engine_Rated output | |
| Engine_Max. output | |
| Engine_Fuel | Automobile gasoline |
| Engine_Fuel tank capacity | 3.1 L(0.82 USG) |
| Engine_Engine oil | |
| Engine_Engine oil capacity | |
| Engine_Continuous operating time | |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | |
| Applicable liquids_Suspended solid percentage | |
| Applicable liquids_Max. solids size | |
| Applicable liquids_Temperature | |
| Accessories | |
| Net weight | 34.6 kg (77 lbs) |
| Gross weight | 37.6 kg (82 lbs) |
| Product dimensions L x W x H | 570 × 450 × 468 mm |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
