"FS PUMP" Self-priming Pump for Low Viscosity Oil

Application


Model FS-12D
Connection Dia 20 mm (¾")
Total Head 7 m (23 ft)
Delivery Volume 40 L/min (10 USG/min)
Max. Suction Lift 3 m (9.8 ft)
Voltage DC 12 V
Rated Current 15 A
Output 80 W
Revolution 7300 rpm
Net Weight 4.5 kg (10 lbs) (1 unit)
Gross Weight 25 kg (55 lbs) (5 units)
Dimensions L×W×H (mm) 780 × 305 × 227
Packing Unit 5

Performance curve and outline drawing
Document download

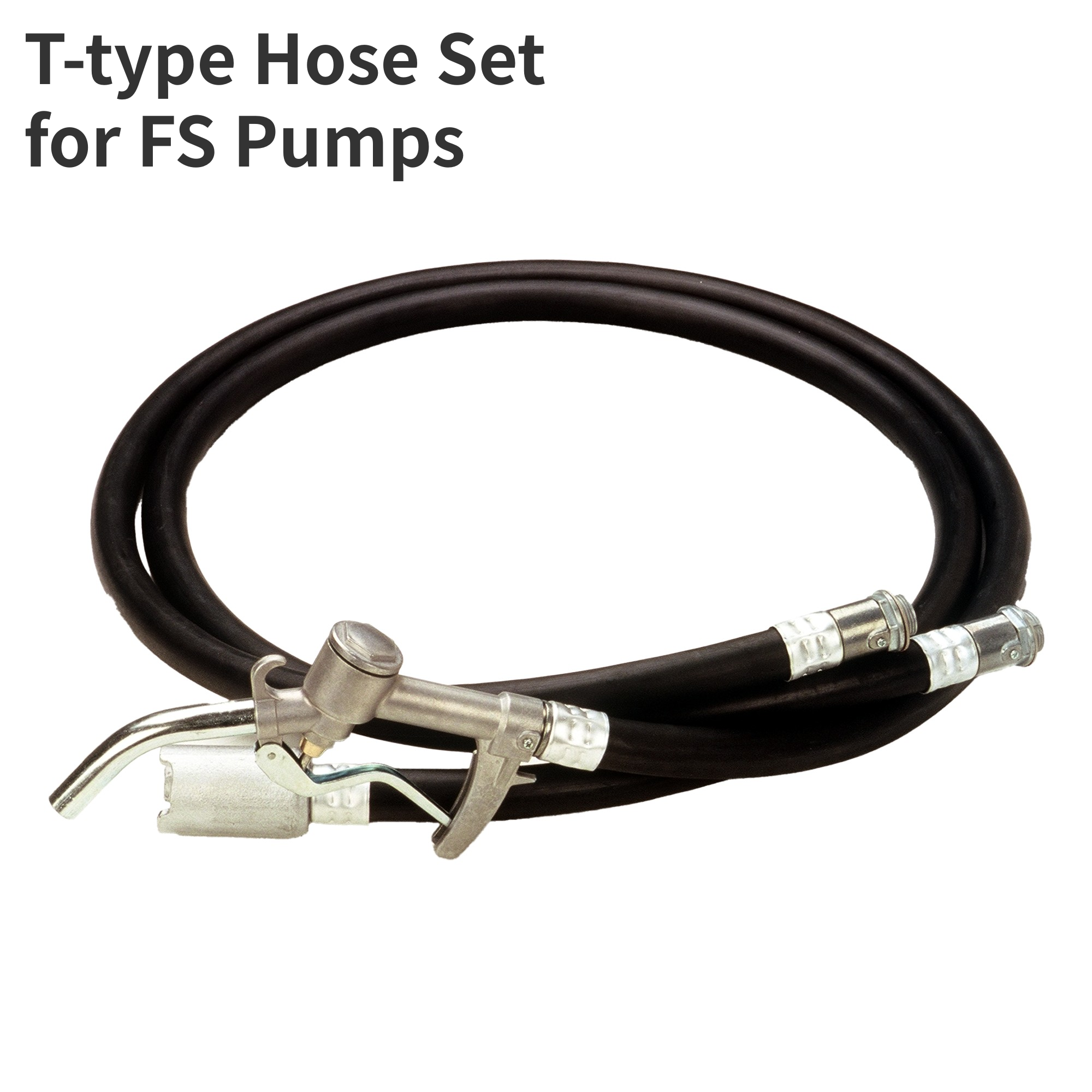

Optional parts
