"FS PUMPS" Marine Self-priming Pump for Seawater

Application


• Specially designed for use with seawater.

• Pump and motor are constructed to withstand seawater and operated by DC 24V power source.

 1. Seawater proof motor: These motors are specially designed for seawater applications.

 2. Special aluminum compound for motor casing is made to withstand seawater corrosion.

Model FS-3224S
P
U
M
P
Connection Dia 32 mm (1¼")
Connection Thread Inner Pipe Thread
Total Head 18.5 m (60 ft)
Delivery Volume 100 L/min (26 USG/min)
M
O
T
O
R
Voltage DC 24 V
Rated Current 16 A
Output 200 W / 6200 rpm
Rating Continuous
Power Cord 5 m (16 ft)
Standard Accessories 1 Strainer, 2 Hose Nipples, 1 Set Carbon Brush
Net Weight 7.8 kg (17 lbs)(1 unit)
Gross Weight 28 kg (62 lbs)(3 units)
Dimensions L×W×H (mm) 555 × 385 × 325
Packing Unit 3

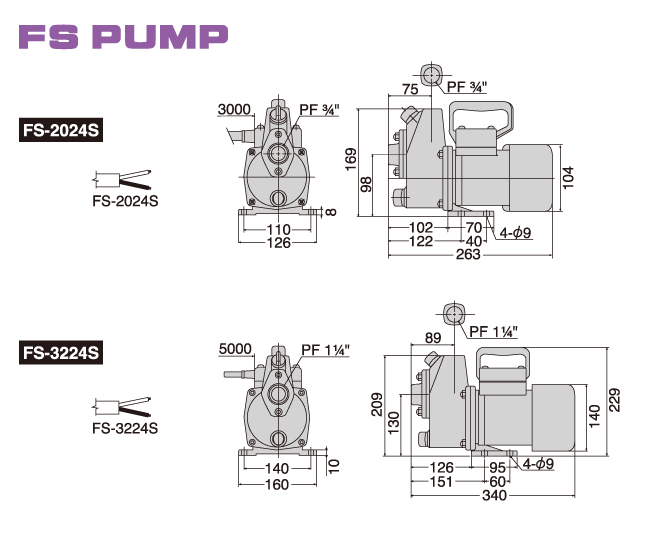

Performance curve and outline drawing
