Construction & Civil Engineering Engine Pump Semi Trash Pump Honda STH Series

Engine Pump Semi Trash Pump Honda STH Series STH-50X STH-50X

Economical Trash Pumps For Sandy & Muddy Water

Application


Introduction examples


• Silicon Carbide Mechanical Seal (SiC).

4 to 5 times more durable than standard Carbon Ceramic Mechanical Seal.

• Spheroidal graphite iron casting (FCD 450) for Impeller and Casing.

6.5 times more corrosion resistant than standard FC or Cast Iron .

• Impeller can be removed easily without special tool.

• Long bolt assembly for easy maintenance.

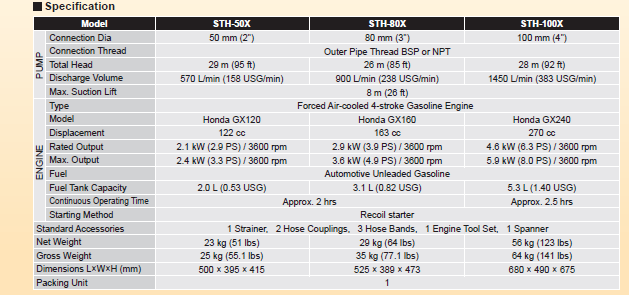

Model STH-50X
P
U
M
P
Connection Dia 50 mm (2")
Connection Thread
Outer Pipe Thread BSP or NPT
Total Head 29 m (95 ft)
Delivery Volume 600 L/min (158 USG/min)
Max. Suction Lift 8 m (26 ft)
E
N
G
I
N
E
Type Forced Air-cooled 4-stroke Gasoline Engine
Model Honda GX120
Displacement
122 cc
Rated Output 2.1 kW (2.9 PS) / 3600 rpm
Max. Output 2.4 kW (3.3 PS) / 3600 rpm
Fuel Automotive Unleaded Gasoline
Fuel Tank Capacity 2.0 L (0.53 USG)
Continuous Operating Time Approx. 2 hrs
Starting Method Recoil Starter
Standard Accessories 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine Tool Set, 1 Spanner
Net Weight 23 kg (51 lbs)
Gross Weight 25 kg (55.1 lbs)
Dimensions L×W×H (mm) 500 × 395 × 415
Packing Unit 1

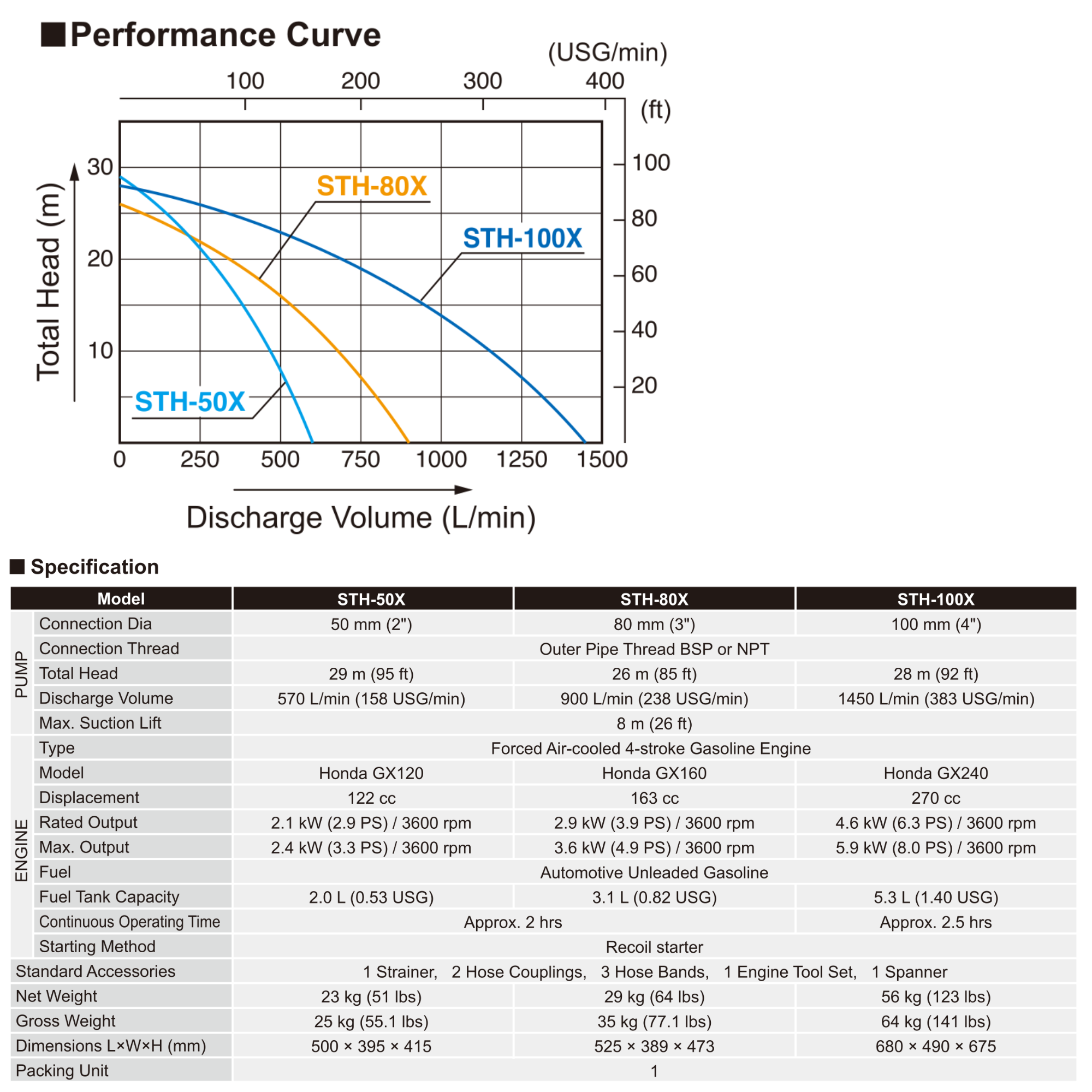

Performance curve and outline drawing
Document download

Optional parts


Support for this product


FAQ about Honda STH Series

FAQ aboutSemi Trash Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
