Construction & Civil Engineering Engine Pump Trash Pump KOSHIN KTZ Series

Engine Pump Trash Pump KOSHIN KTZ Series KTZ-100X KTZ-100X

Heavy Duty Trash Pumps

Application



Introduction examples


Koshin Trash Pumps

Reasonable price

About 30% less price compared to same quality trash pumps. The most affordable price ever.

•Excellent Quality

Provides powerful performance and long durability with New KOSHIN engine and enhanced pump.

•Easy maintenance

Thoughtful flame for easy replacement of carburetor.
You can clear inside of pump by simply removing pump casing with only one tool.

Model KTZ-100X
P
U
M
P
Connection Dia 100 mm(4")
Connection Thread
Outer Pipe Thread BSP or NPT
Total Head 24 m (78 ft)
Delivery Volume 1680 L/min (443 USG/min)
Max. Suction Lift 8m (26 ft)
Material for Mechanical Seal Sic (Silicon Carbide) × Sic
Material for Impeller Hi-Chrome
Material for Volute FCD450
E
N
G
I
N
E
Type Forced Air-Cooled 4-stroke Gasoline Engine
Model Koshin K420
Displacement
420cc
Rated Output 7.2 kW (9.8 PS) / 3600 rpm
Max. Output 8.6 kW (11.7 PS) / 3600 rpm
Fuel Automotive Unleaded Gasoline
Fuel Tank Capacity 5.9 L (1.5 USG)
Continuous Operating Time Approx. 1.5 hrs
Starting Method Recoil Starter
Standard Accessories 1 Strainer, 3 Hose Bands, 1 Engine Tool Set, 1 Multi Tool Wrench (BSP Type: 2 Hose Couplings)
Net Weight 78.2 kg (172.4 lbs)
Gross Weight 88.0 kg (194.0 lbs)
Dimensions L×W×H (mm) 816 × 621 × 632
Packing Unit 1

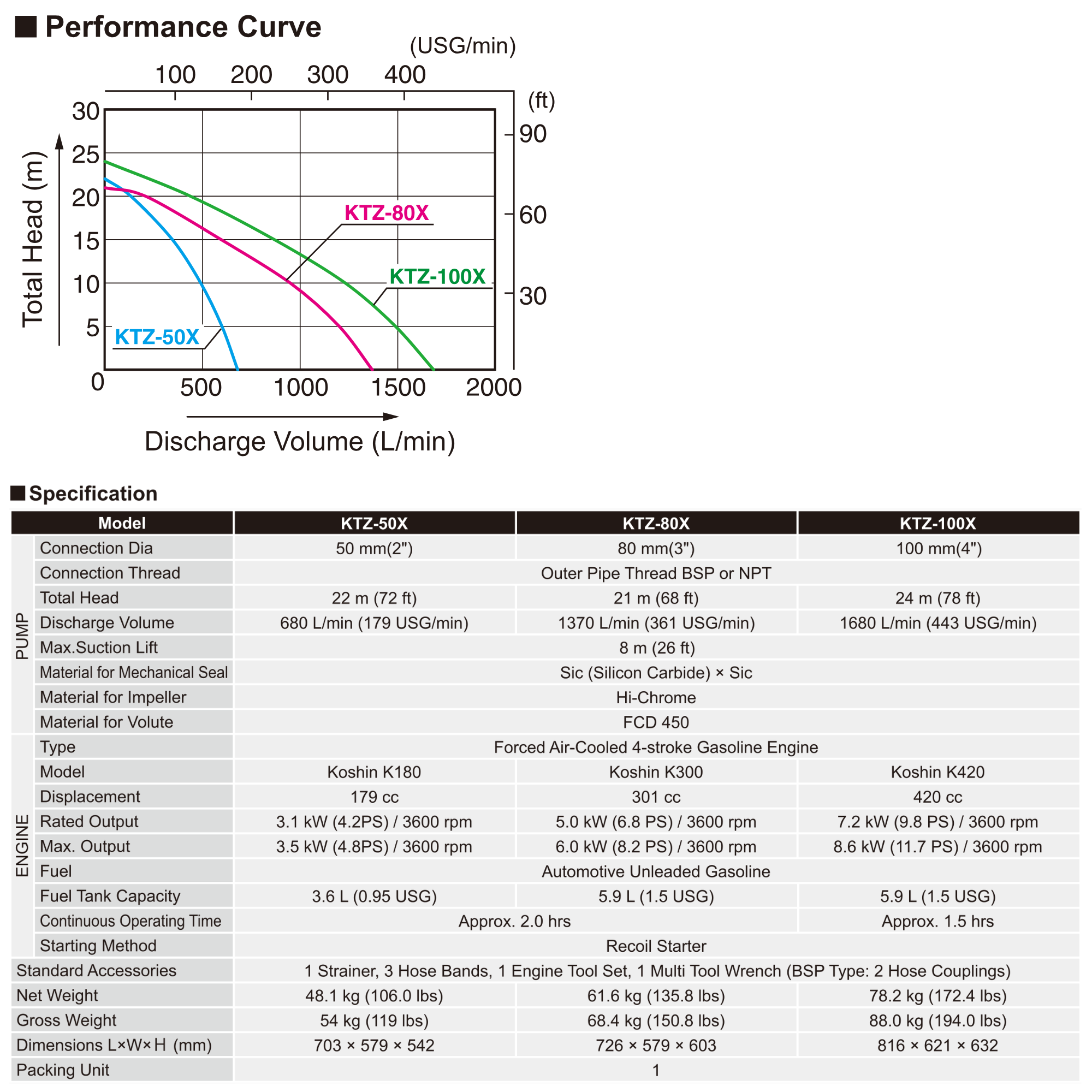

Performance curve and outline drawing
Document download

Optional parts


Support for this product


FAQ about KOSHIN KTZ Series

FAQ aboutTrash Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
