| Product category | Engine Pump - High Pressure Pump - Honda SERH Series |
|---|---|
| Product name | SERH-50 |
| Model name | SERH-50-BAA-0 |
| Pump_Connectiondia_Suction | 65 mm(2 1/2'''') /50 mm(2 '''') |
| Pump_Connectiondia_Discharge | 65 mm(2 1/2'''') /50 mm(2 '''') |
| Pump_Connection thread | Outer Pipe Thread |

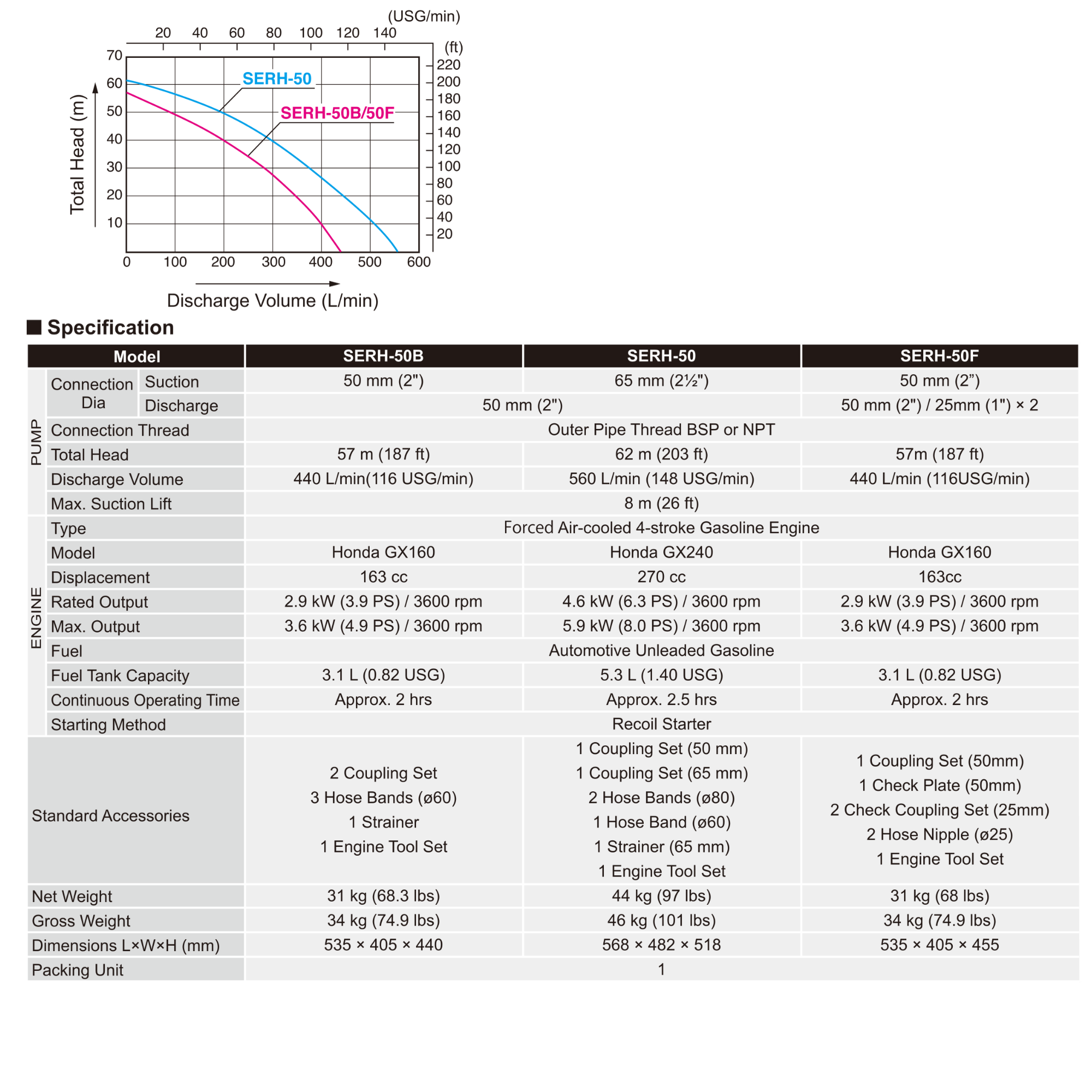

| Pump_Total head | 62 m(203 ft) |
| Pump_Discharge volume | 560 L/min (148 USG/min) |
| Pump_Max. suction head | 8 m (26 ft) |
| Engine_Type | Forced Air-Cooling 4 Cycle Gasoline Engine |
| Engine_Model | Honda GX 240 |
| Engine_Displacement | |
| Engine_Rated output | 4.5 kW (6 PS) /3600 min-1 |
| Engine_Max. output | 5.9 kW (8 PS) /3600 min-1 |
| Engine_Fuel | Automobile Non-lead Gasome |
| Engine_Fuel tank capacity | 6.0 L |
| Engine_Engine oil | |
| Engine_Engine oil capacity | |
| Engine_Continuous operating time | a.b.t 3.0hrs (full tank) |
| Engine_Starting method | Recoil starter |
| Applicable liquids_Consistency | |
| Applicable liquids_Suspended solid percentage | |
| Applicable liquids_Max. solids size | |
| Applicable liquids_Temperature | |
| Accessories | 1 Strainer, 2 Couplings, 3 Hose Bands, 4 Engine Tool sets |
| Net weight | 44 kg |
| Gross weight | |
| Product dimensions L x W x H |
1. Engine start failure.（Refer to instruction of engine）
2. Blocked impeller.（Disassemble & clean）
