Construction & Civil Engineering Generator GV Series KOSHIN GV Series

Generator KOSHIN GV Series GV-7000S GV-7000S

Durable and High Performance Generator

Application


Introduction examples


•High Fuel Efficiency

•Ultimate Durability
100% Copper Wire for Alternator Anti-Rusty fuel tank Full roll cage for ultimate protection

•Less Vibration & Quiet Operation

•All models have oil alert function.

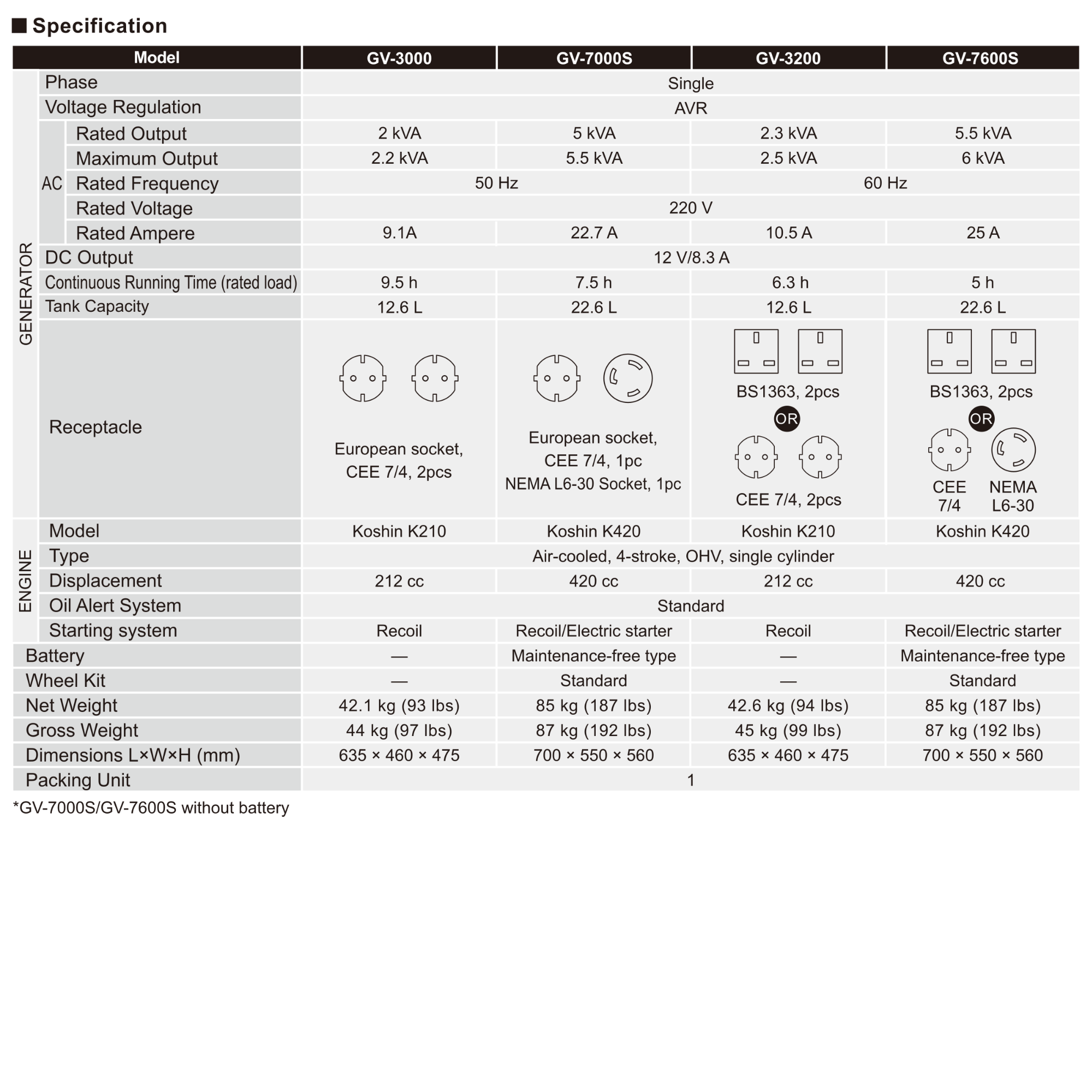

Product category
Product name GV-7000S
AC_Rated Frequency 50 Hz
AC_Rated Output 5 kVA
AC_Rated Voltage 220 V (230 V)
AC_Rated Ampere 22.7 A (21.7 A)
AC_Rated Frequency 50 Hz
DC_Rated 8.3 A/ 12 V/ 100 VA
Engine_Model KOSHIN K420
Engine_Model KOSHIN K420
Engine_type 4-Stroke, overhead valve, single cylinder
Engine_Displacement 420 cm3 (190×66 mm)
Engine_Compression Ratio 8.5:1
Engine_Speed 3,000 min-1
Engine_Starting Method Recoil + Electric starter
Engine_Cooling System Forced air
Engine_Ignition System Transistorized magneto
Engine_Oil capacity 1.1 L
Engine_Starting Method Recoil + Electric starter
Engine_Fuel Tank Capacity 22.6 L
Engine_Spark Plug LG F6TC (NGK BP6ES)
Net weight 85.5 kg
Gross weight 88.0 kg
Product dimensions L x W x H 697 mm (27.4 in) x525 mm (20.7 in) x530 mm (20.9 in)
Packing dimensions L x W x H
Packing Unit


Performance curve and outline drawing
