Industrial Application Oil Pump Gear Pump GL Series

Oil Pump Gear Pump GL Series GL-25-5 GL-25-5

"GEAR PUMP" GL Series for Low Viscosity Oil

Application

• Kerosene

• Machine oil

• Heavy oil

• Light oil


• Safety by-pass function protects pump.

• For oil transfer

Model GL-25-5
Performance Curve No.
P
U
M
P
Connection Dia 25 mm (1")
Power 1.5 kW
Poles 4 P
Max.
Pressure
MPa 0.5
kgf/cm2 5
Delivery
Volume
60 Hz
(1800 rpm)
55 L/min
(14 USG/min)
50 Hz
(1500 rpm)
46 L/min
(12 USG/min)
Material of Housing ADC
Coupling ZDC
Pump Shaft Dia φ 18 mm
Net Weight 5 kg (11 lbs)
Gross Weight 5.6 kg (13 lbs)
Dimensions L×W×H (mm) 224 × 150 × 155
Packing Unit 1

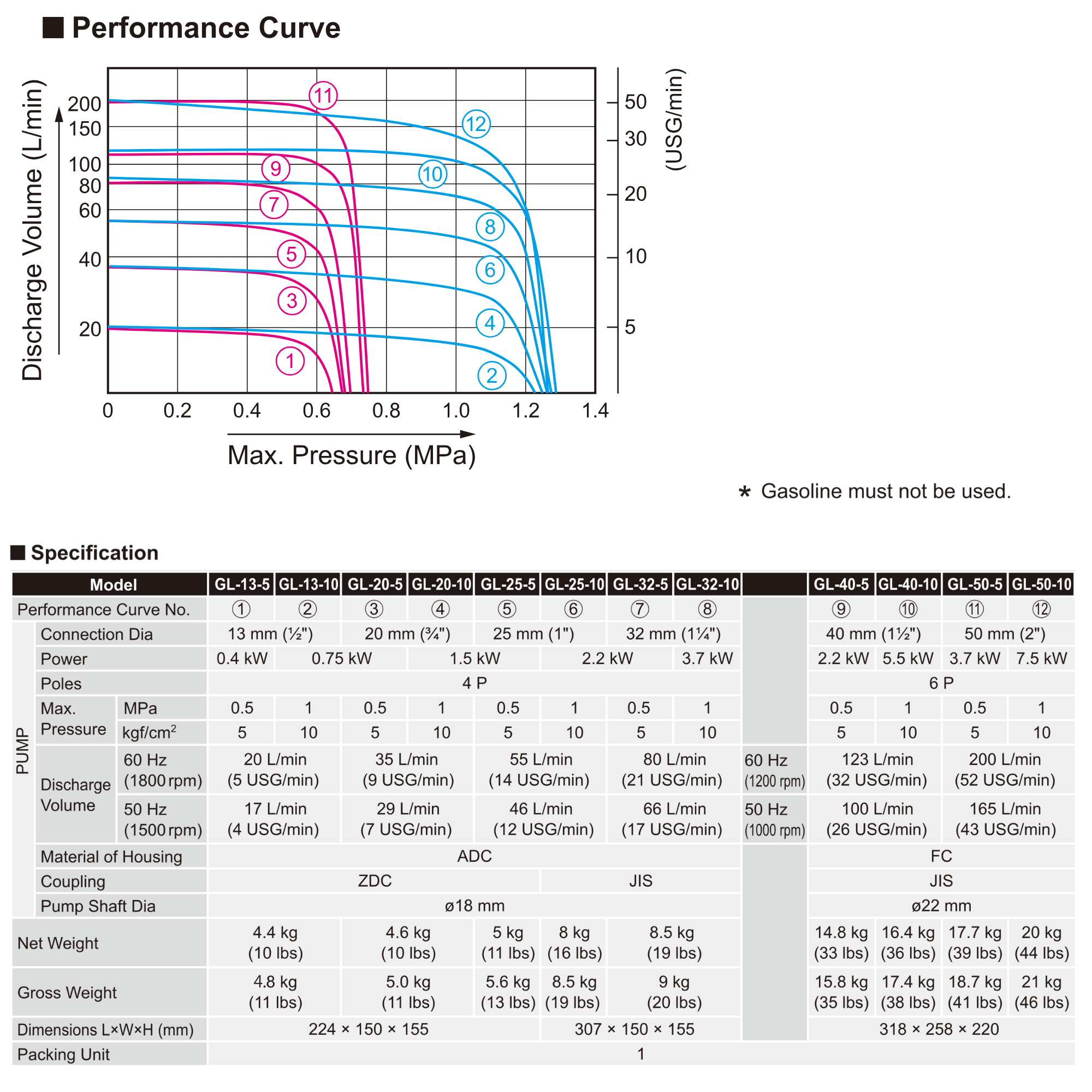

Performance curve and outline drawing
