Construction & Civil Engineering Engine Pump Semi Trash Pump STV Series

Engine Pump Semi Trash Pump KOSHIN STV Series STV-50X STV-50X

For Sandy and Muddy Water

Application

• SIC

Silicon Carbide Mechanical Seal 4-5 times more durable than Standard Carbon Ceramic  mechanical seal.

• FCD

Spheroidal Graphite Iron Casting for Impeller & Volute Casing 6.5 times more erosion resistance than Standard Cast Iron (FC200).

■Outstanding Features

• Suitable for Sandy and Muddy Water usage

• Particles up to 9 mm can be pumped through

• Guaranteed 8 meters Suction lift

• Long bolt assembly for easy maintenance

Product category Engine Pump - Semi Trash Pump - STV Series
Product name STV-50X
Model name STV-50X-BAA-5
PumpConnectiondiaSuction 50 mm (2 '')
Discharge
Connection thread Outer Pipe Thread
Total head 26m (85ft)
Discharge volume 580 L/min (153 USG/min)
Max. suction head 8 m (26 ft)
EngineType Forced Air Cooled 4 Cycle Gasoline Engine
Model K180
Displacement 179 cm3
Rated output 3.1 kW (4.2 PS) / 3600 min-1
Max. output
Fuel Automobile unleaded gasoline
Fuel tank capacity 3.6L (0.95gal)
Engine oil
Engine oil capacity
Continuous operating time Approx. 2.6hrs (full tank)
Starting method
Applicable liquidsConsistency
Suspended solid percentage
Max. solids size
Temperature
Accessories 1 Strainer, 1 Spanner, 1 Engine Tool Set, 2 Hose Coupling, 3 Hose Bands
Net weight 29.0 kg (63.9 lbs)
Gross weight 31.0 kg (68.3 lbs)
Product dimensions L x W x H
Packing dimensions L x W x H 554 × 400 × 471 mm

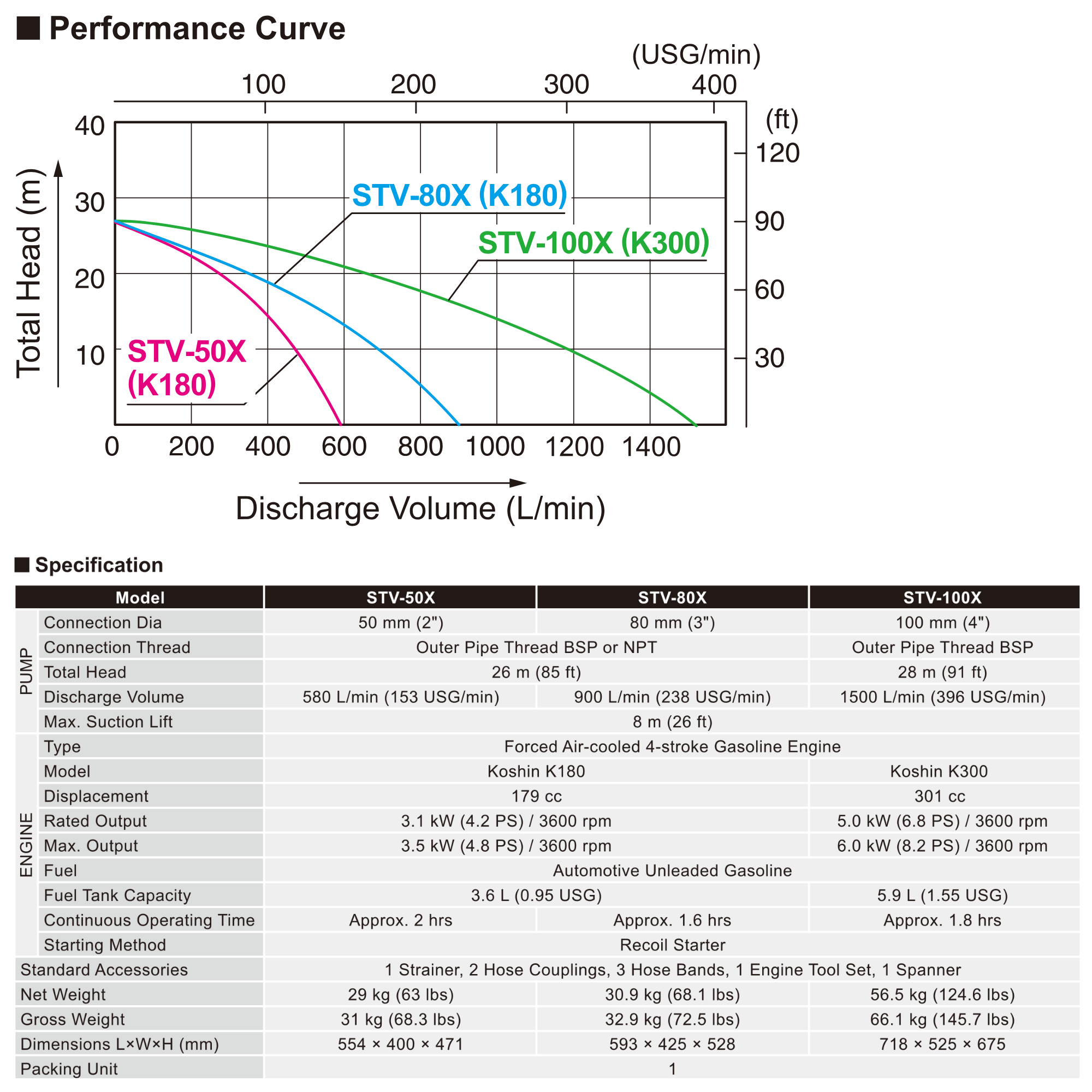

Performance curve and outline drawing
Document download

Optional parts

Support for this product

FAQ about STV Series

FAQ aboutSemi Trash Pump

FAQ about Engine Pump

Pump does not work.

1. Engine start failure.Refer to instruction of engine

2. Blocked impeller.Disassemble & clean
